LED Ceiling Fixture VIDEX-LED-EDGE-SC-72W-WHITE
Gyártói elnevezés:
LED Ceiling Fixture VIDEX-LED-EDGE-SC-72W-WHITE

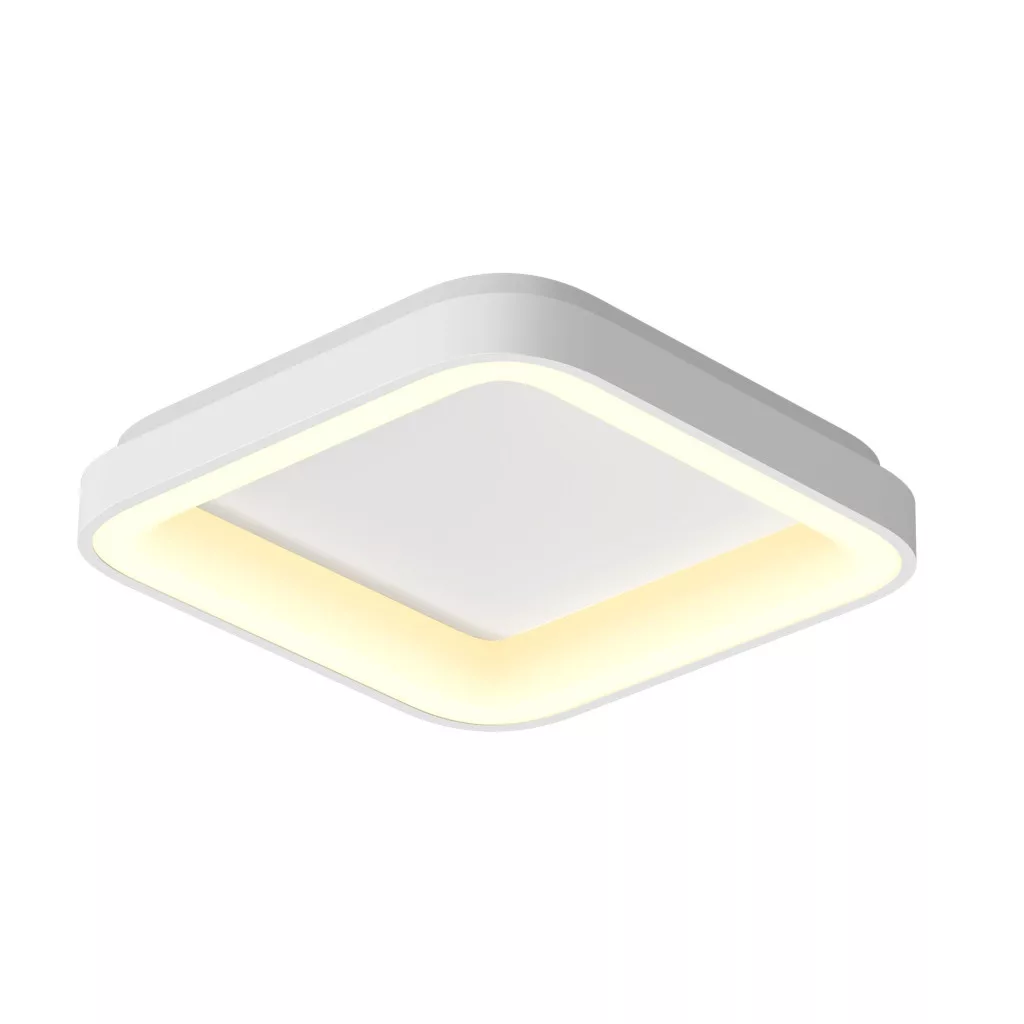

LED Ceiling Fixture VIDEX-LED-EDGE-SC-72W-WHITE (VLE-ESC-72W) is designed for general indoor lighting.
ADVANTAGES AND FEATURES OF THE LIGHT FIXTURE:- flexible lighting mode adjustment- memory function- rated for 20 000 switching cycles- luminous flux – 4700Lm- beam angle – 120°- color temperature – 2700K–6000K- service life – 35 000 hours- minimum distance from the illuminated object – 0.5 m- IP20 protection class (the product can be used only in dry indoor environments)

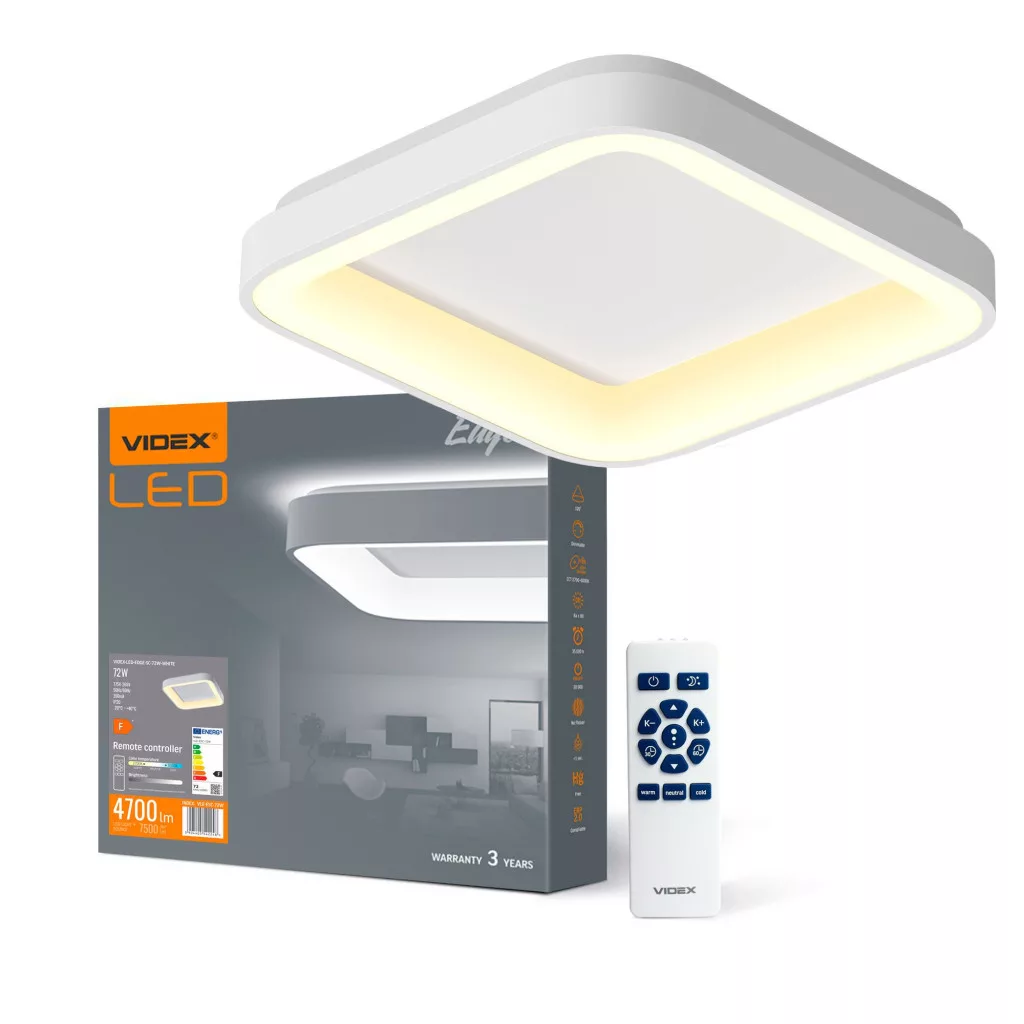

PACKAGE CONTENTS:1) Light fixture2) Mounting bracket3) Set of fastening elements4) Remote control5) AAA battery (x2)6) User manual7) Individual packaging
INSTALLATION AND CONNECTION INSTRUCTIONSRead the manual before installation. Installation must be carried out by a qualified specialist. Installation is allowed only when the power supply is switched off. The device must be installed on a level surface, such as a ceiling. Connection is performed using the integrated terminal block. Before first use, check the correct mechanical mounting and wiring connections. The product may be used only in an electrical network that meets the energy requirements and quality standards defined by law. WARNING! The infrared receiver must remain visible (see the manual).
REMOTE CONTROL OPERATION1. ON/OFF. Press to turn the light on or off.2. Night mode. Press once to activate the night light mode. Press again to return to the previous mode.3. Increase brightness. Press and hold to gradually increase brightness.4. Decrease brightness. Press and hold to gradually decrease brightness.5. Quick brightness change. Press to cycle through three brightness levels.6. Decrease color temperature. Press and hold to gradually adjust the main light to a warmer tone.7. Increase color temperature. Press and hold to gradually adjust the main light to a cooler tone.8. 30-minute auto-off timer. After pressing, the device will flash once; the light will turn off automatically after 30 minutes.9. 60-minute auto-off timer. After pressing, the device will flash twice; the light will turn off automatically after 60 minutes.10. «Warm white light». Press to quickly set the main light to a warm tone.11. «Neutral white light». Press to quickly set the main light to a neutral tone.12. «Cold white light». Press to quickly set the main light to a cold tone.
OPERATION VIA WALL SWITCH Turn the wall switch off and immediately on to cycle through color temperatures and the night light mode. The fixture has a memory function and will recall the previous mode when turned on again.
This product may be stored and used only in a dry indoor environment without exposure to direct sunlight. WARNING! Do not look directly at the LED beam.
Warranty period for the LED light fixture is 3 years.
ADVANTAGES AND FEATURES OF THE LIGHT FIXTURE:- flexible lighting mode adjustment- memory function- rated for 20 000 switching cycles- luminous flux – 4700Lm- beam angle – 120°- color temperature – 2700K–6000K- service life – 35 000 hours- minimum distance from the illuminated object – 0.5 m- IP20 protection class (the product can be used only in dry indoor environments)
PACKAGE CONTENTS:1) Light fixture2) Mounting bracket3) Set of fastening elements4) Remote control5) AAA battery (x2)6) User manual7) Individual packaging
INSTALLATION AND CONNECTION INSTRUCTIONSRead the manual before installation. Installation must be carried out by a qualified specialist. Installation is allowed only when the power supply is switched off. The device must be installed on a level surface, such as a ceiling. Connection is performed using the integrated terminal block. Before first use, check the correct mechanical mounting and wiring connections. The product may be used only in an electrical network that meets the energy requirements and quality standards defined by law. WARNING! The infrared receiver must remain visible (see the manual).
REMOTE CONTROL OPERATION1. ON/OFF. Press to turn the light on or off.2. Night mode. Press once to activate the night light mode. Press again to return to the previous mode.3. Increase brightness. Press and hold to gradually increase brightness.4. Decrease brightness. Press and hold to gradually decrease brightness.5. Quick brightness change. Press to cycle through three brightness levels.6. Decrease color temperature. Press and hold to gradually adjust the main light to a warmer tone.7. Increase color temperature. Press and hold to gradually adjust the main light to a cooler tone.8. 30-minute auto-off timer. After pressing, the device will flash once; the light will turn off automatically after 30 minutes.9. 60-minute auto-off timer. After pressing, the device will flash twice; the light will turn off automatically after 60 minutes.10. «Warm white light». Press to quickly set the main light to a warm tone.11. «Neutral white light». Press to quickly set the main light to a neutral tone.12. «Cold white light». Press to quickly set the main light to a cold tone.
OPERATION VIA WALL SWITCH Turn the wall switch off and immediately on to cycle through color temperatures and the night light mode. The fixture has a memory function and will recall the previous mode when turned on again.
This product may be stored and used only in a dry indoor environment without exposure to direct sunlight. WARNING! Do not look directly at the LED beam.
Warranty period for the LED light fixture is 3 years.
