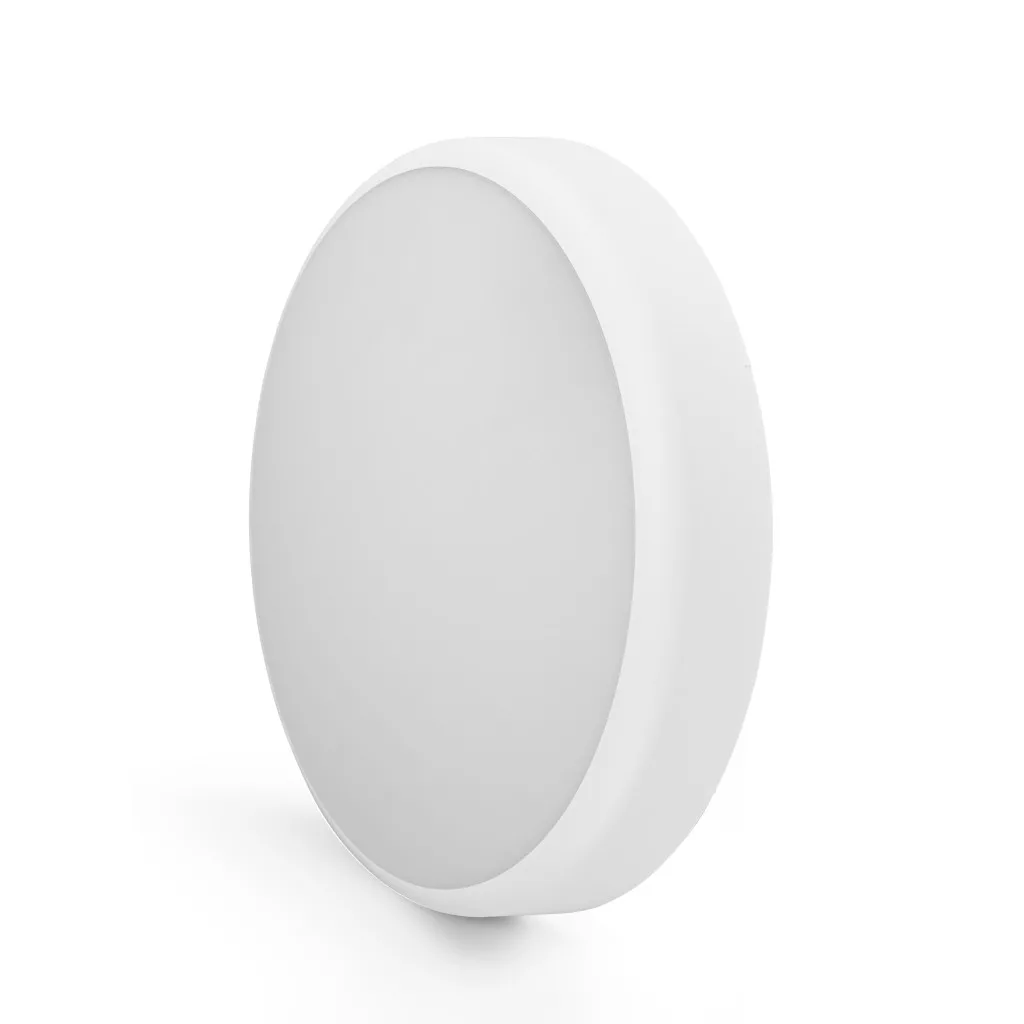

LED Ceiling Light with motion sensor VIDEX VL-CLR-300-2 30W 5CCT White

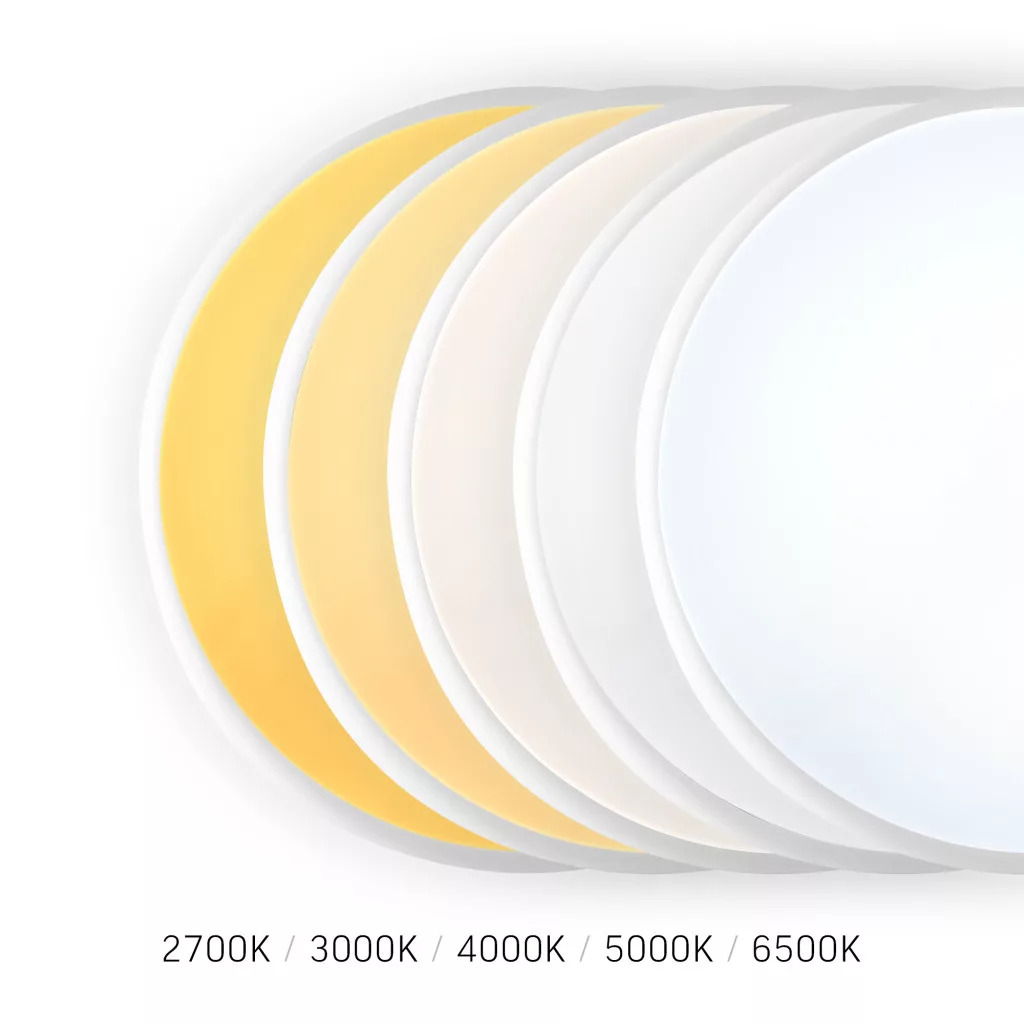

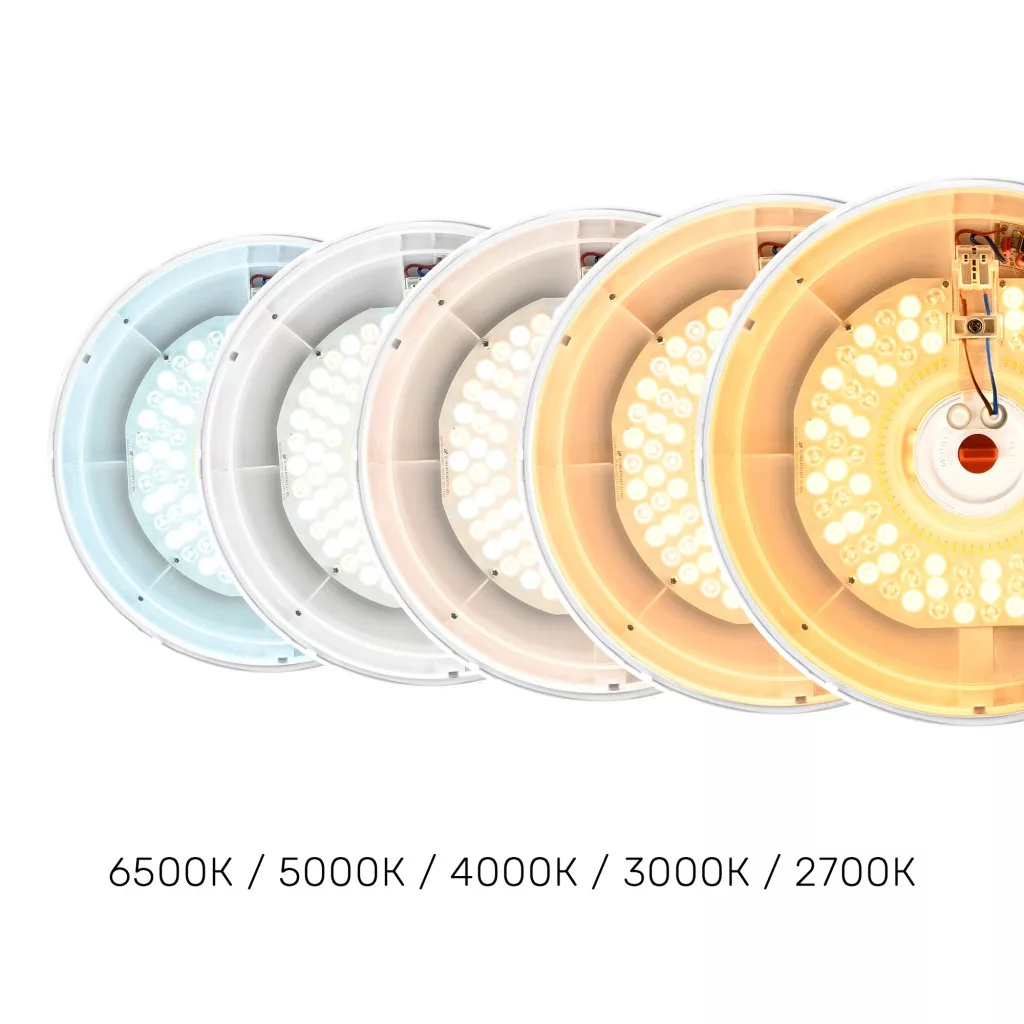

LED Ceiling Light with motion sensor VIDEX VL-CLR-300-2 is designed for residential and commercial lighting. Suitable applications include stairwells, corridors, living rooms, enclosed balconies, and bathrooms. ADVANTAGES AND FEATURES:  - Flexible lighting mode configuration - Rated for 20 000 ON/OFF switching cycles - Luminous flux – 3200Lm - Beam angle – 120° - Color temperature – 2700/3000/4000/5000/6500K - Lifetime – 25 000 hours - Minimum distance from illuminated object – 0.5 m - Protection rating – IP44 (suitable for environments where water splashes may occur) - Impact resistance rating – IK07 PACKAGE CONTENTS: 1. Ceiling light 2. Mounting anchors with screws 3. User manual 4. Individual packaging INSTALLATION AND CONNECTION INSTRUCTIONS Installation must be carried out by a qualified specialist. All work must be performed with the power switched off. Install the fixture in accordance with the instructions. Wiring should be connected via the built-in terminal block. To ensure proper IP protection, the power cable diameter must fit tightly into the sealing grommets. Before first use, check the reliability of mechanical mounting and electrical connections. The product may only be used in an electrical network that complies with applicable energy and quality standards. Warning! For loop-through group connection, the maximum total load per group is 1000 W, provided that a cable with a cross-section of at least 1.5mm² is used. The minimum distance between two fixtures must be 3 meters to avoid interference between motion sensors. OPERATING INSTRUCTIONS Switch №1. Mode Selection 1st position – Normal mode: the light is controlled by a standard wall switch (ON/OFF). 2nd position – Daytime motion sensor mode: the light turns on automatically when motion is detected during the day or night and turns off after a preset delay if no motion is detected. 3rd position – Night motion sensor mode: the light turns on automatically when motion is detected at night (<30 lx) and turns off after a preset delay if no motion is detected. Switch №2. Post-detection delay (radar sensor) 1st position – 30 seconds 2nd position – 60 seconds 3rd position – 180 seconds Switch №3. Color Temperature Setting 1st position – 2700K (warm light) 2nd position – 3000K (warm light) 3rd position – 4000K (neutral white) 4th position – 5000K (daylight) 5th position – 6500K (cold daylight) Switch №4. Power Setting 1st position – 30W 2nd position – 25W 3rd position – 15W This product is intended for indoor use only. WARNING! Do not exceed the maximum total load of 1000W when using loop-through group connection. Do not look directly into the LED beam. The warranty period is 3 years.
