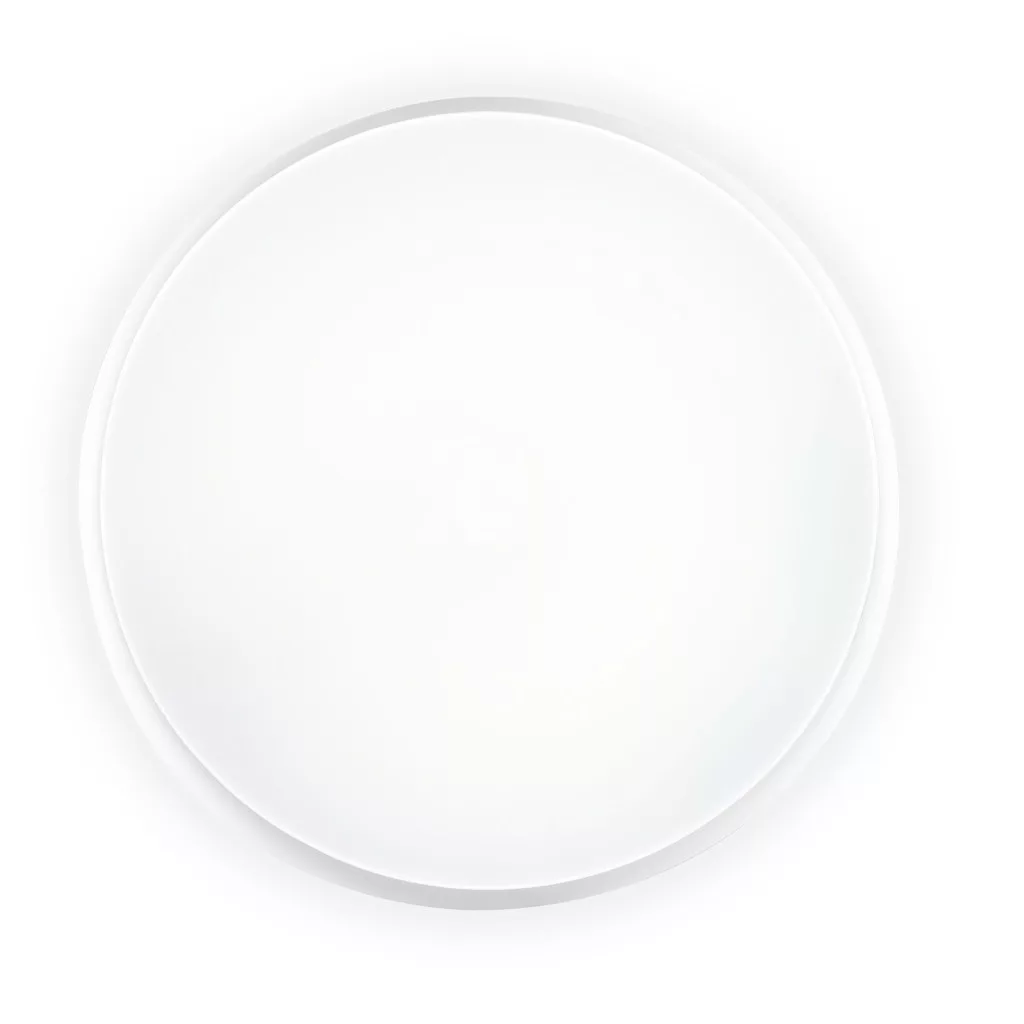

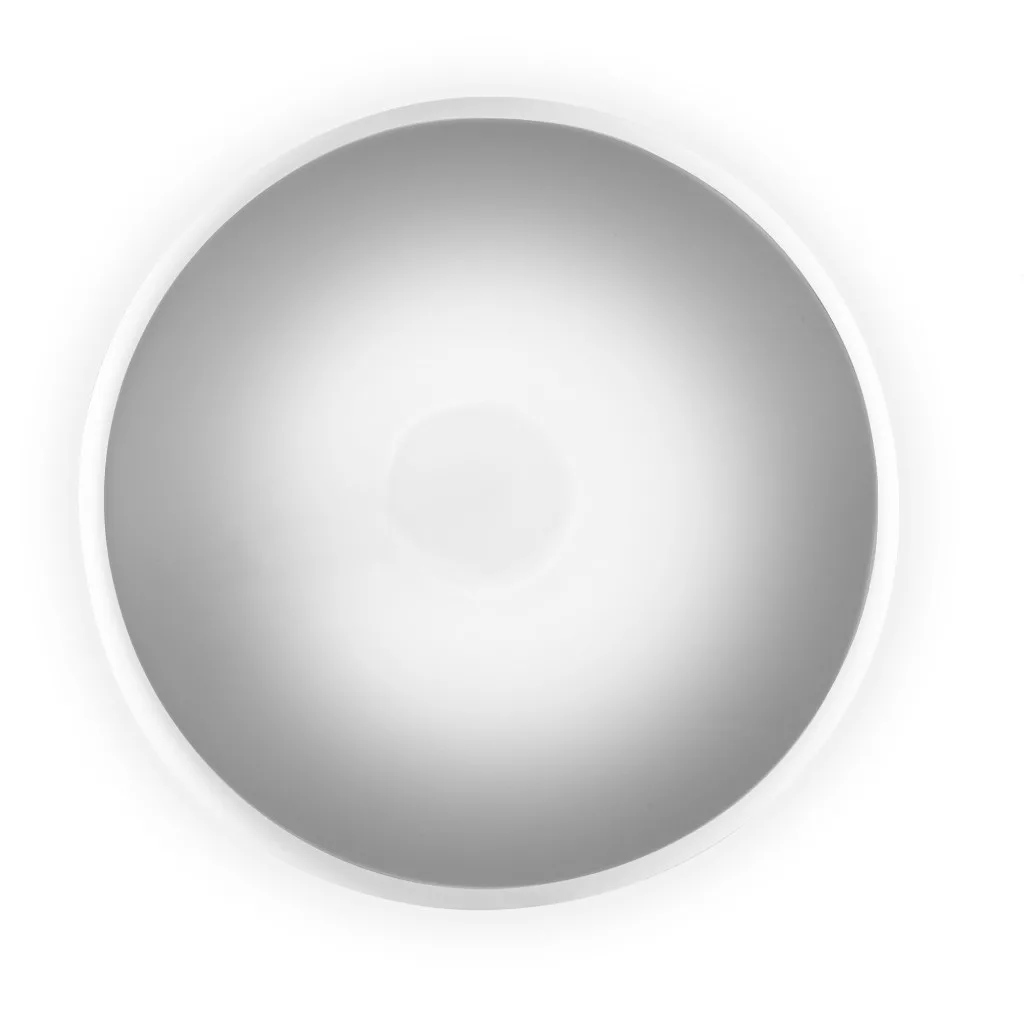

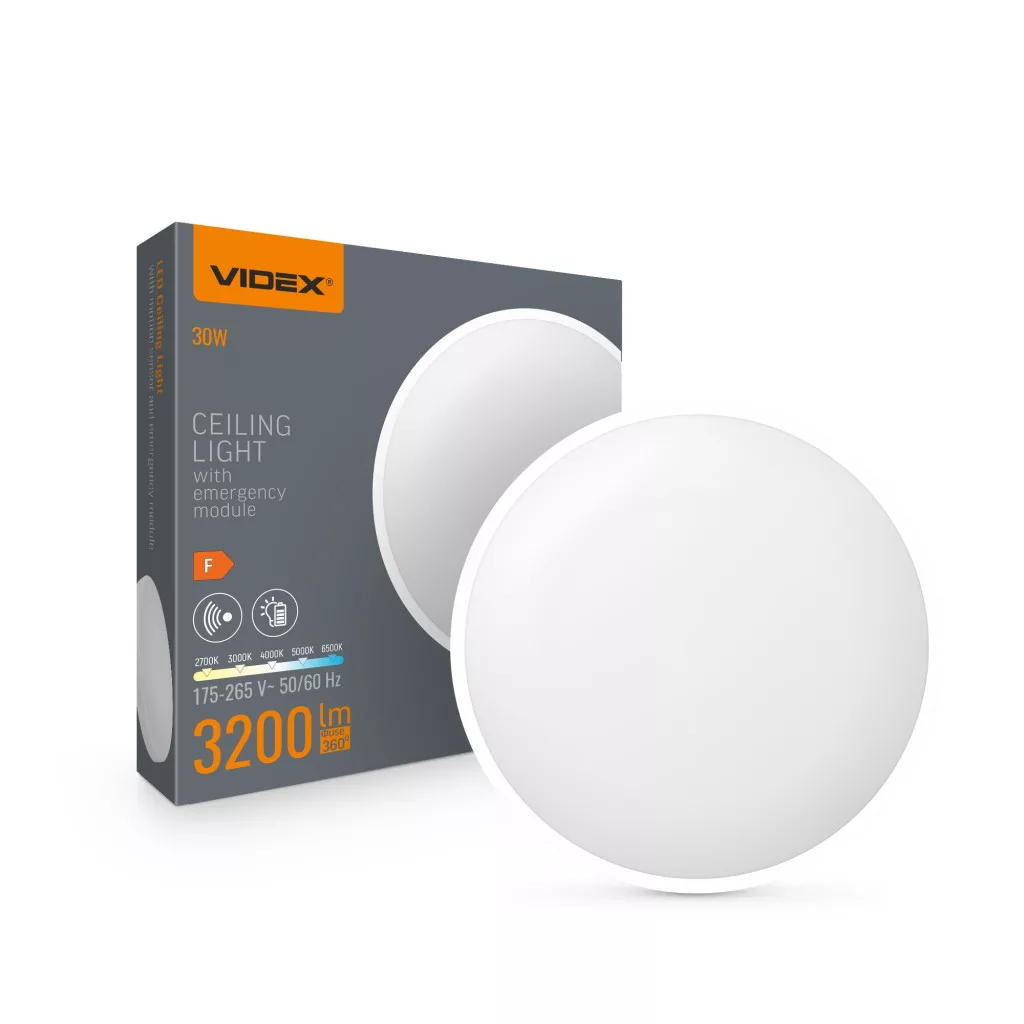

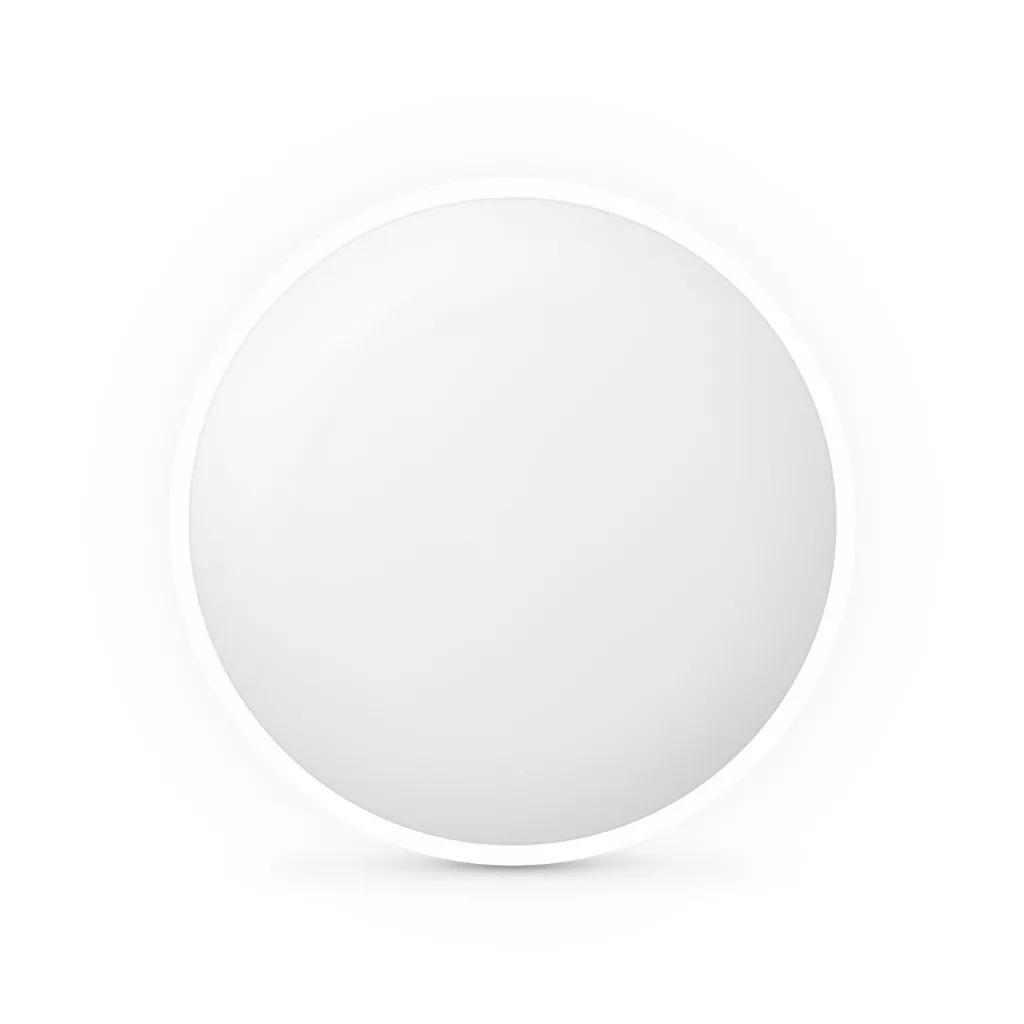

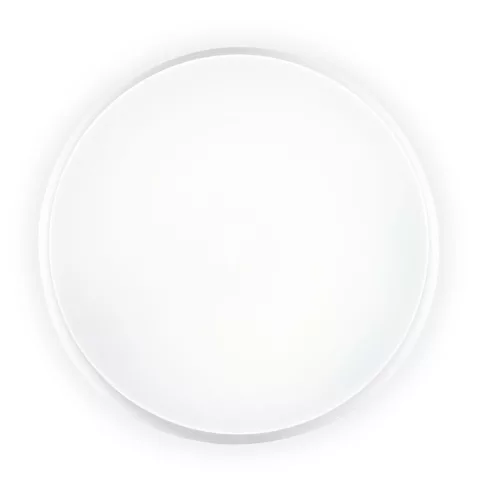

LED Emergency Ceiling Light with motion sensor VIDEX VL-CLR-EM300-2
Gyártói elnevezés:
LED Emergency Ceiling Light with motion sensor VIDEX VL-CLR-EM300-2
We present LED Emergency Ceiling Light with motion sensor VIDEX VL-CLR-EM300-2, which combines the functions of standard lighting and an emergency light source. This luminaire is equipped with built-in 18650-type batteries, providing continuous illumination even during a power outage. Possible installation locations include hallways, corridors, balconies, living rooms, and bathrooms. The luminaire is made of high-quality materials, ensuring long service life.
KEY ADVANTAGES:
? 2in1 functionality: Acts as primary lighting and automatically switches to emergency mode during a power outage. ? Built-in batteries: Equipped with two 18650 lithium-ion batteries with a capacity of 2200 mAh each, providing long-lasting operation in emergency mode. ? Adjustable Color Temperature: Choose between 2700K, 3000K, 4000K, 5000K, and 6500K to create the desired atmosphere. ? High-Quality Lighting: Color Rendering Index (CRI) > 80, providing natural and comfortable illumination. ? Energy Efficiency: LED technology ensures low power consumption and extended lifespan. ? Motion Sensor: Automatically turns the light on when motion is detected, enhancing energy efficiency. ? Durability: 25 000-hour lifespan with up to 20 000 ON/OFF cycles.
TECHNICAL SPECIFICATIONS: - Power: 15–25–30W - Supply voltage: AC 175–265V, 50/60Hz - Rated luminous flux: 1800–3200Lm depending on selected power - Emergency mode luminous flux: 300Lm - Color temperature: 2700K–6500K - Beam angle: 120° - Battery type: 3.7V Li-ion 18650 - Number of batteries: 2 - Ingress protection: IP44 (suitable for areas with occasional water splashes) - Impact protection class: IK07 - Product is not compatible with external dimmers - Dimensions: Ø330x70mm

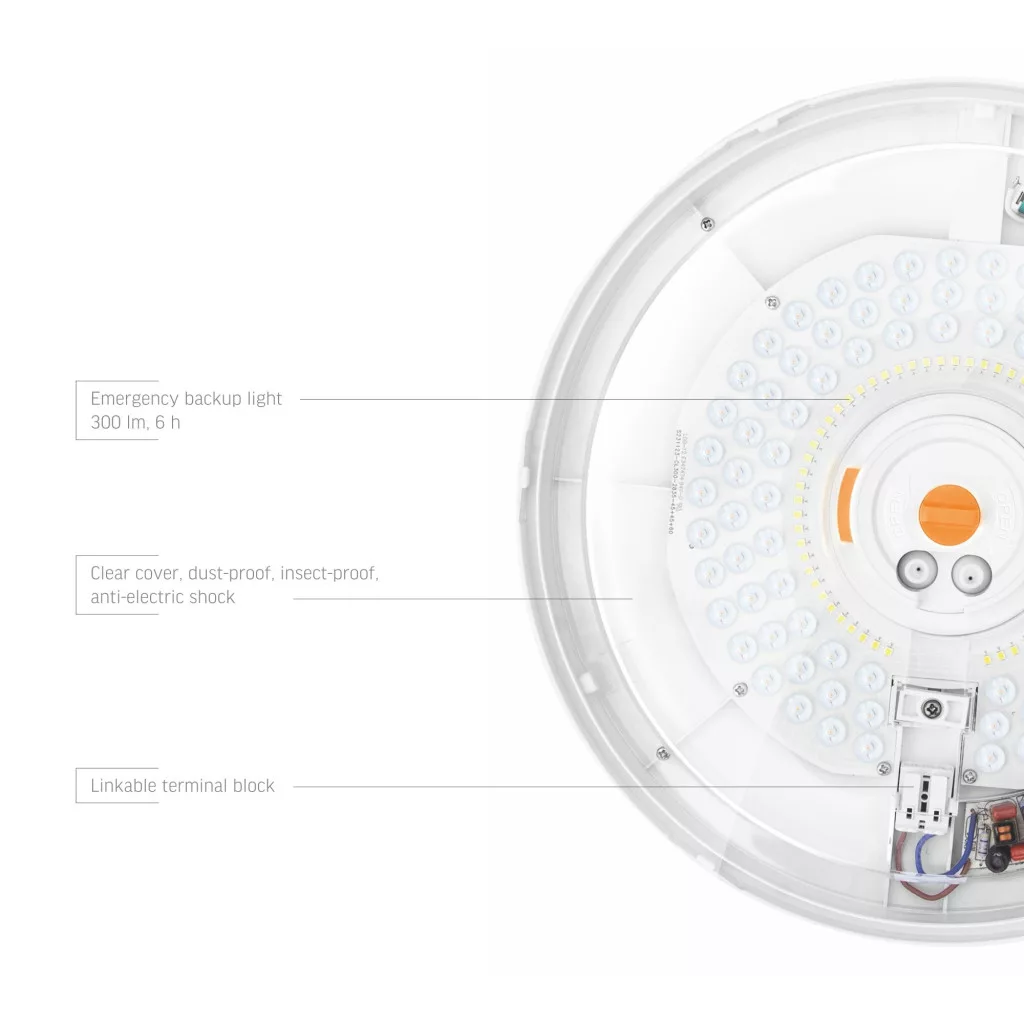

Installation Instructions Before installation, disconnect the power supply. Read the instructions carefully. Installation must be carried out by a qualified professional. The luminaire is designed for wall or ceiling mounting. Connection should be made via the built-in terminal block, which allows multiple luminaires to be connected in series. Before first use, check the mechanical installation and electrical connection. The product should only be used with a power supply that meets energy requirements and quality standards established by law.
Attention! For series (group) connection, the maximum total power per group must not exceed 1000W when using a wire cross-section of at least 1.5 mm². The minimum distance between two luminaires should be 3 meters to prevent mutual interference of the motion sensors.
OPERATING INSTRUCTIONS

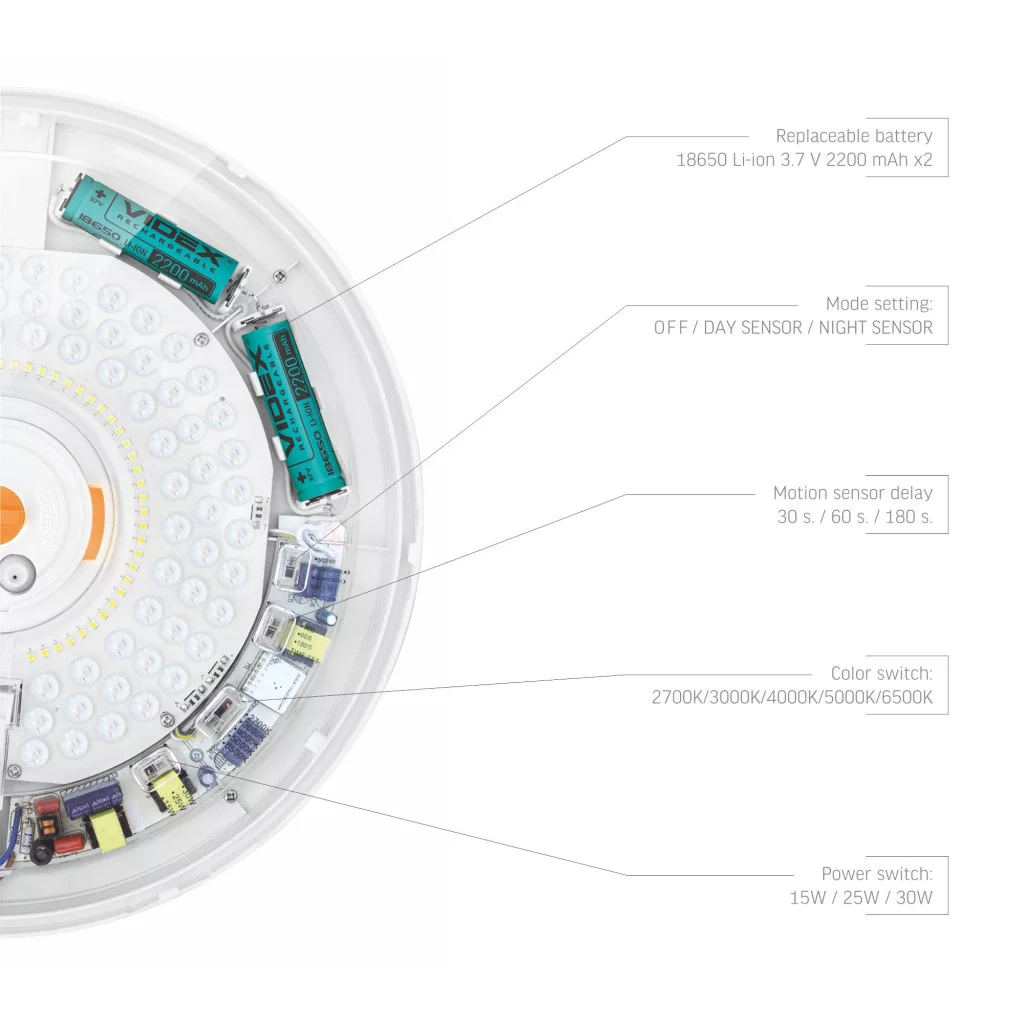

Lever ą1. Mode selection 1st position – Normal mode: the luminaire operates in standard on/off mode. 2nd position – Daytime motion sensor mode: the light automatically turns on when motion is detected during the day or night (>30Lx) and turns off after a set time if no motion is detected. 3rd position – Night motion sensor mode: the light automatically turns on when motion is detected at night (<30Lx) and turns off after a set time if no motion is detected.
Lever ą2. Motion sensor post-induction delay adjustment 1st position – 30 seconds 2nd position – 60 seconds 3rd position – 180 seconds

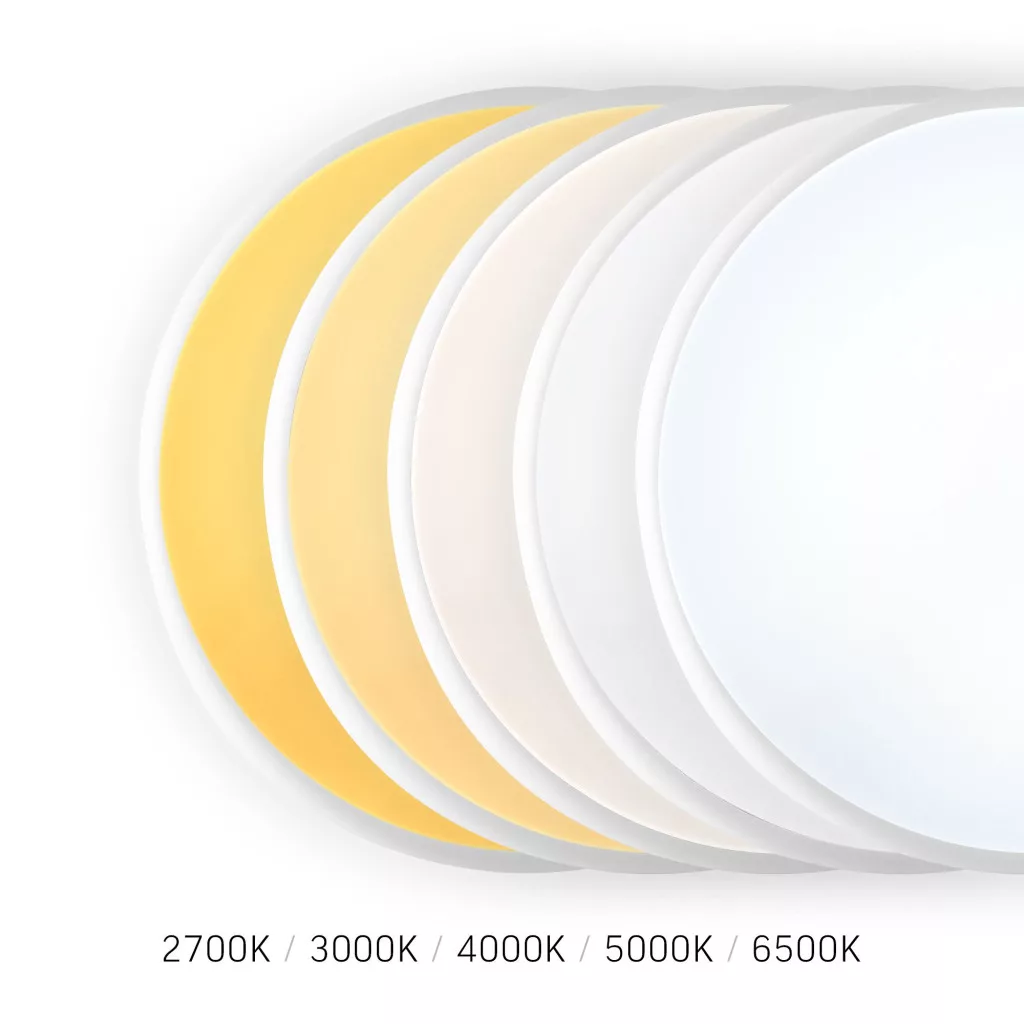

Lever 3. Color temperature adjustment 1st position – 2700K (warm light) 2nd position – 3000K (warm light) 3rd position – 4000K (neutral white light) 4th position – 5000K (daylight) 5th position – 6500K (cool daylight)
Lever 4. Power adjustment 1st position – 30W 2nd position – 25W 3rd position – 15W
EMERGENCY BACKUP LIGHTING The emergency backup light automatically turns on when the power goes out and the switch remains on. When electricity is restored, the luminaire automatically switches from emergency lighting back to normal mode. Note: When emergency light is active, the motion sensor does not operate.
BATTERY CHARGING The batteries charge automatically when power is available and the switch is on. Batteries will not charge when the switch is off. The luminaire has a built-in intelligent circuit that protects against overcharge, deep discharge, and overvoltage.

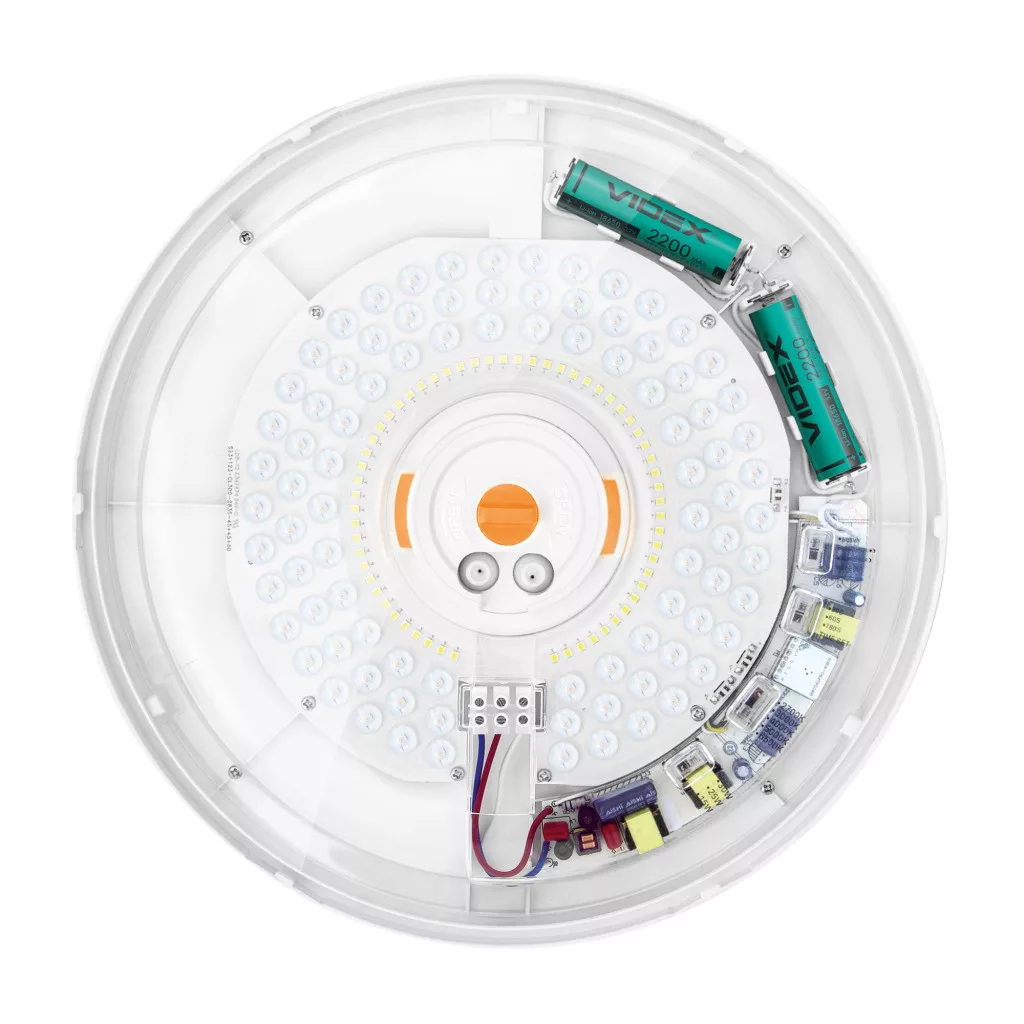

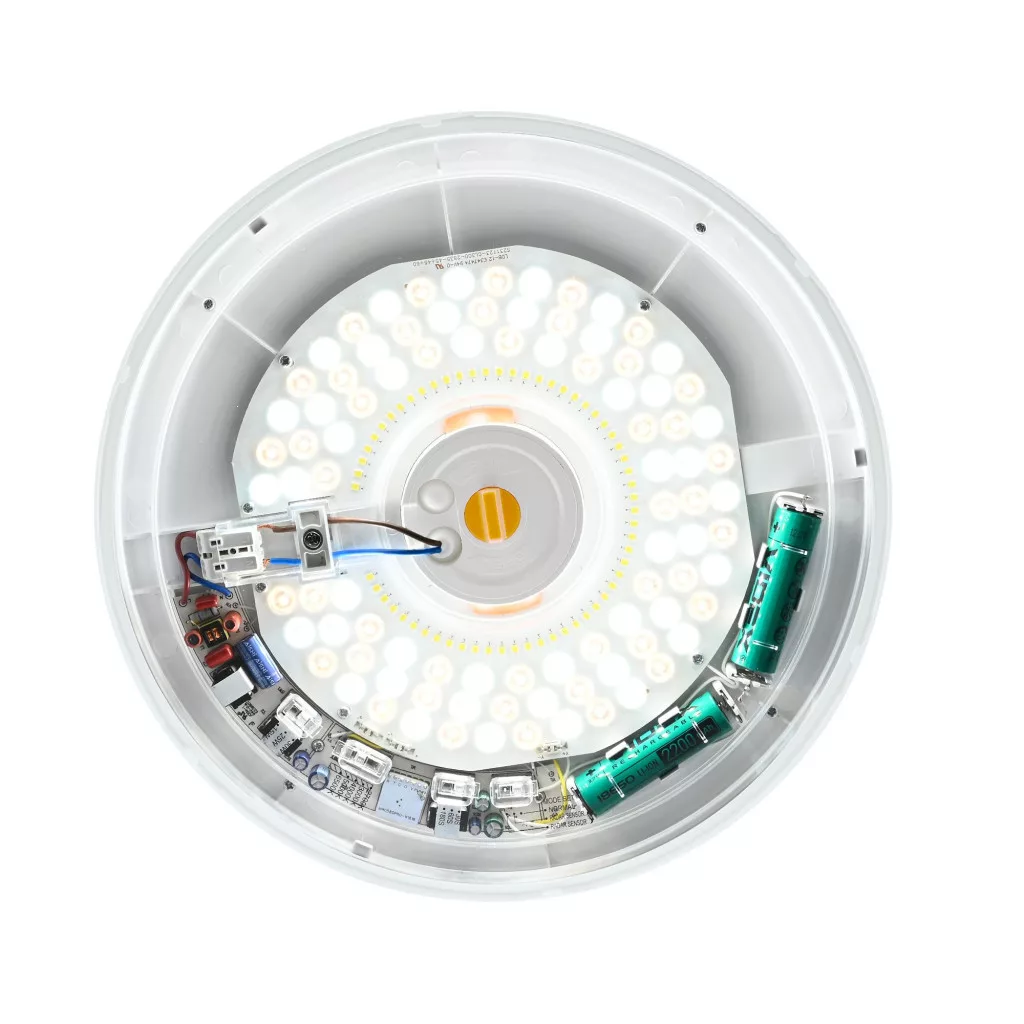

BATTERY REPLACEMENT The luminaire uses replaceable batteries. If the batteries degrade over time, they can be replaced with the same type. To replace the batteries: a) Remove the diffuser. b) Unscrew the screws holding the transparent protective cover and remove it. c) Insert new batteries according to the (+/-) diagram near the battery compartment. d) Reinstall the transparent cover and secure with screws. e) Reattach the diffuser.
This product is for indoor use only.
ATTENTION! For series (group) connection, do not exceed a maximum total load of 1000W. Do not look directly into the LED beam.
The VIDEX VL-CLR-EM300-2 luminaire is a reliable and modern solution for uninterrupted lighting in your home or office. Its features and specifications ensure comfort and safety in any conditions.
KEY ADVANTAGES:
? 2in1 functionality: Acts as primary lighting and automatically switches to emergency mode during a power outage. ? Built-in batteries: Equipped with two 18650 lithium-ion batteries with a capacity of 2200 mAh each, providing long-lasting operation in emergency mode. ? Adjustable Color Temperature: Choose between 2700K, 3000K, 4000K, 5000K, and 6500K to create the desired atmosphere. ? High-Quality Lighting: Color Rendering Index (CRI) > 80, providing natural and comfortable illumination. ? Energy Efficiency: LED technology ensures low power consumption and extended lifespan. ? Motion Sensor: Automatically turns the light on when motion is detected, enhancing energy efficiency. ? Durability: 25 000-hour lifespan with up to 20 000 ON/OFF cycles.
TECHNICAL SPECIFICATIONS: - Power: 15–25–30W - Supply voltage: AC 175–265V, 50/60Hz - Rated luminous flux: 1800–3200Lm depending on selected power - Emergency mode luminous flux: 300Lm - Color temperature: 2700K–6500K - Beam angle: 120° - Battery type: 3.7V Li-ion 18650 - Number of batteries: 2 - Ingress protection: IP44 (suitable for areas with occasional water splashes) - Impact protection class: IK07 - Product is not compatible with external dimmers - Dimensions: Ø330x70mm
Installation Instructions Before installation, disconnect the power supply. Read the instructions carefully. Installation must be carried out by a qualified professional. The luminaire is designed for wall or ceiling mounting. Connection should be made via the built-in terminal block, which allows multiple luminaires to be connected in series. Before first use, check the mechanical installation and electrical connection. The product should only be used with a power supply that meets energy requirements and quality standards established by law.
Attention! For series (group) connection, the maximum total power per group must not exceed 1000W when using a wire cross-section of at least 1.5 mm². The minimum distance between two luminaires should be 3 meters to prevent mutual interference of the motion sensors.
OPERATING INSTRUCTIONS
Lever ą1. Mode selection 1st position – Normal mode: the luminaire operates in standard on/off mode. 2nd position – Daytime motion sensor mode: the light automatically turns on when motion is detected during the day or night (>30Lx) and turns off after a set time if no motion is detected. 3rd position – Night motion sensor mode: the light automatically turns on when motion is detected at night (<30Lx) and turns off after a set time if no motion is detected.
Lever ą2. Motion sensor post-induction delay adjustment 1st position – 30 seconds 2nd position – 60 seconds 3rd position – 180 seconds
Lever 3. Color temperature adjustment 1st position – 2700K (warm light) 2nd position – 3000K (warm light) 3rd position – 4000K (neutral white light) 4th position – 5000K (daylight) 5th position – 6500K (cool daylight)
Lever 4. Power adjustment 1st position – 30W 2nd position – 25W 3rd position – 15W
EMERGENCY BACKUP LIGHTING The emergency backup light automatically turns on when the power goes out and the switch remains on. When electricity is restored, the luminaire automatically switches from emergency lighting back to normal mode. Note: When emergency light is active, the motion sensor does not operate.
BATTERY CHARGING The batteries charge automatically when power is available and the switch is on. Batteries will not charge when the switch is off. The luminaire has a built-in intelligent circuit that protects against overcharge, deep discharge, and overvoltage.
BATTERY REPLACEMENT The luminaire uses replaceable batteries. If the batteries degrade over time, they can be replaced with the same type. To replace the batteries: a) Remove the diffuser. b) Unscrew the screws holding the transparent protective cover and remove it. c) Insert new batteries according to the (+/-) diagram near the battery compartment. d) Reinstall the transparent cover and secure with screws. e) Reattach the diffuser.
This product is for indoor use only.
ATTENTION! For series (group) connection, do not exceed a maximum total load of 1000W. Do not look directly into the LED beam.
The VIDEX VL-CLR-EM300-2 luminaire is a reliable and modern solution for uninterrupted lighting in your home or office. Its features and specifications ensure comfort and safety in any conditions.
