LED Headlamp VIDEX VLF-H066A 2000Lm 5000K
Gyártói elnevezés:
LED Headlamp VIDEX VLF-H066A 2000Lm 5000K

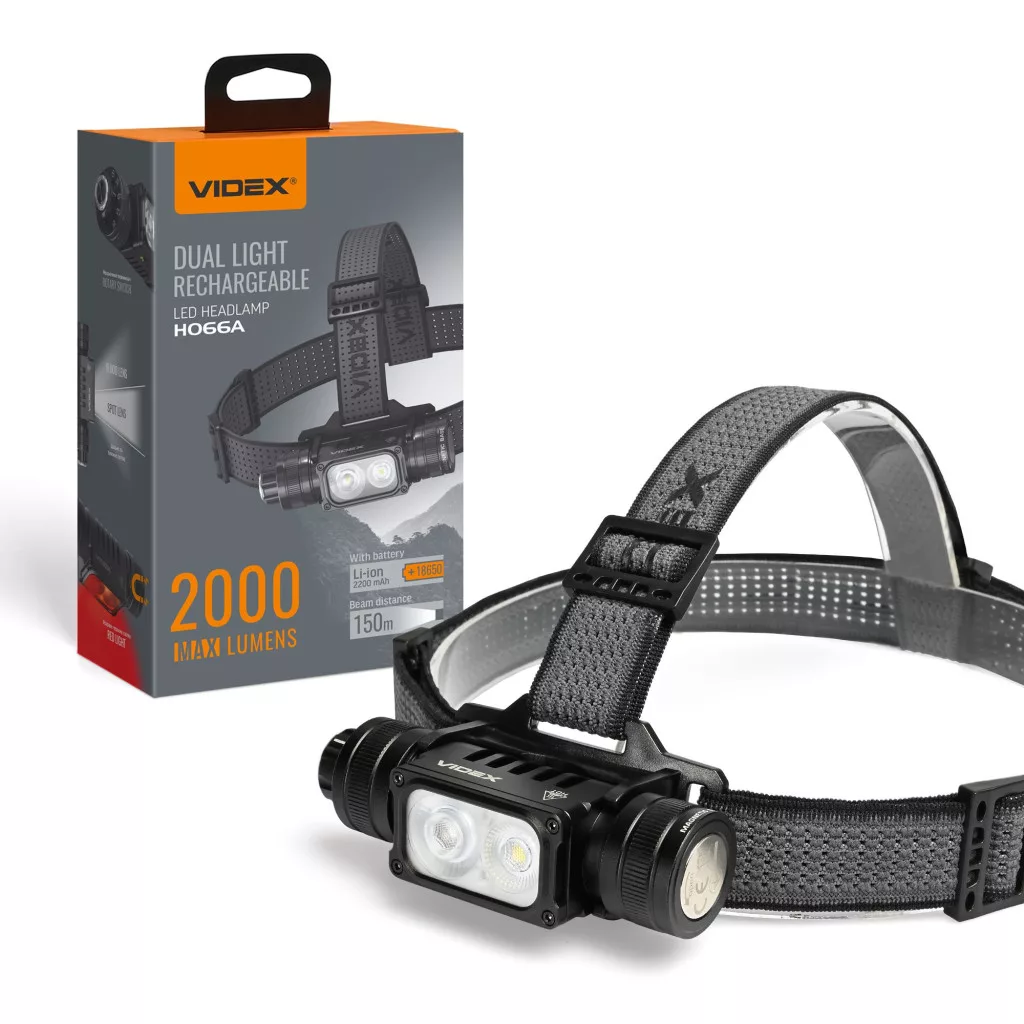

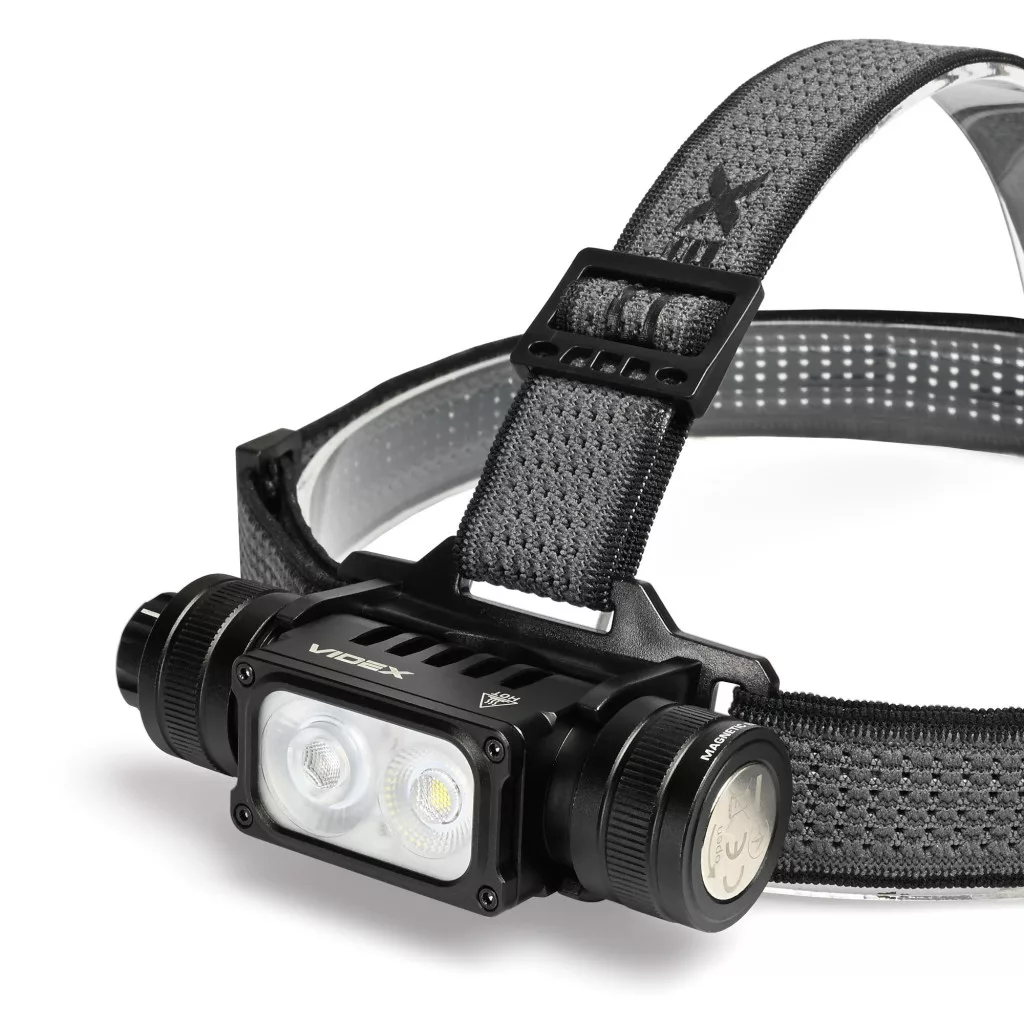

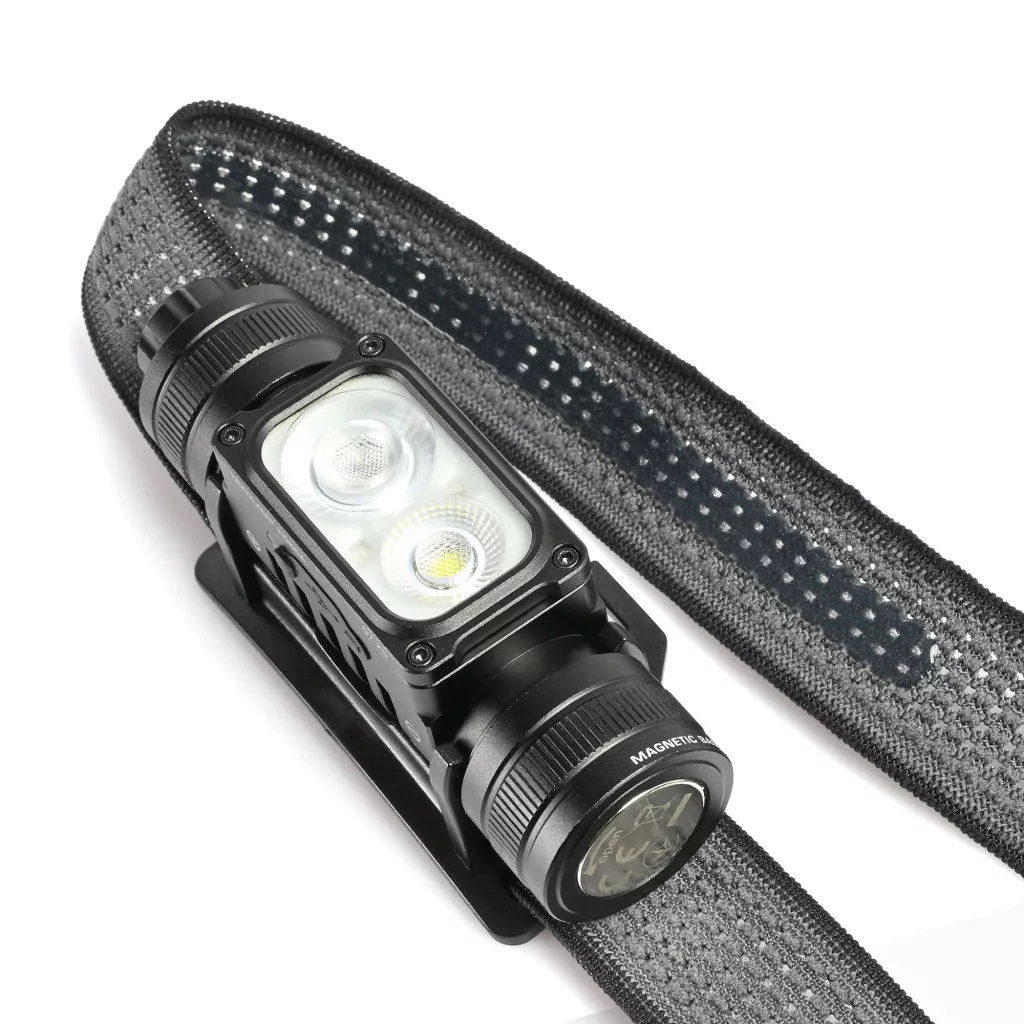

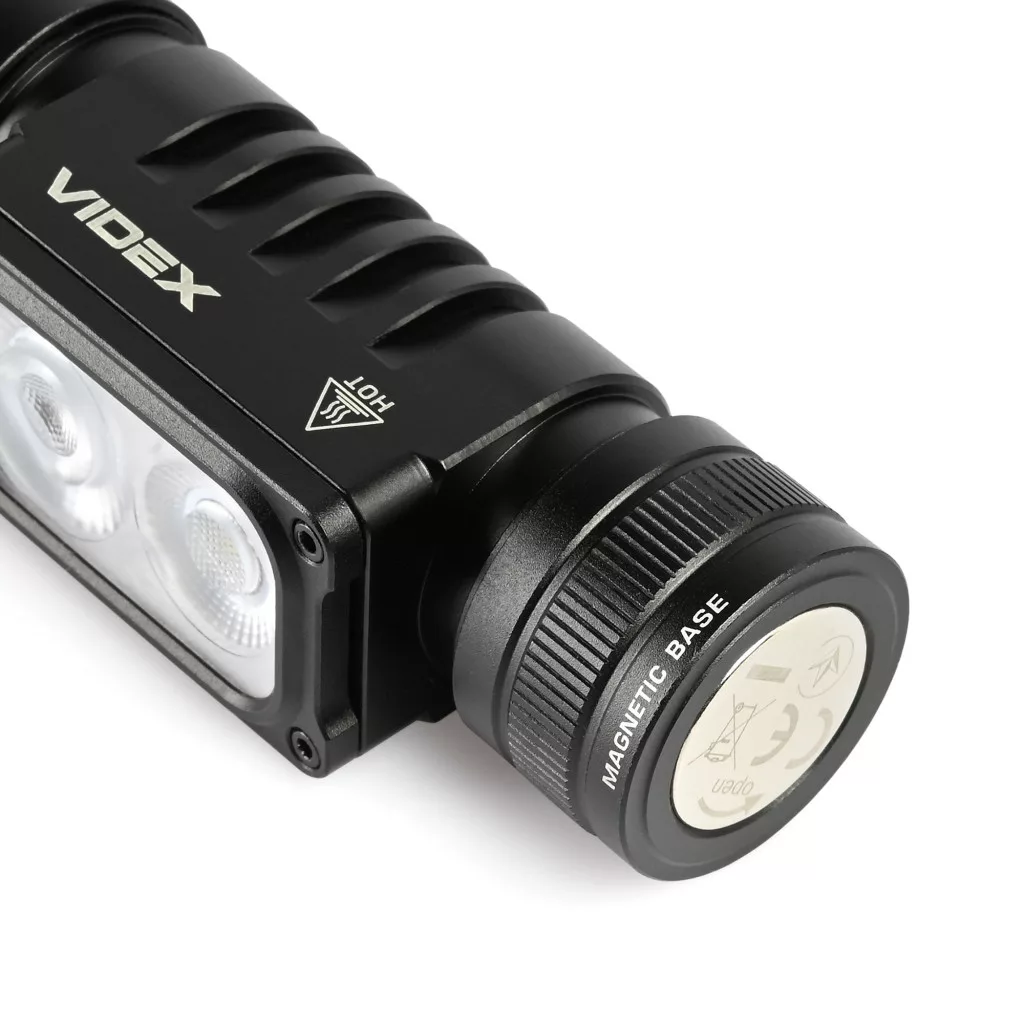

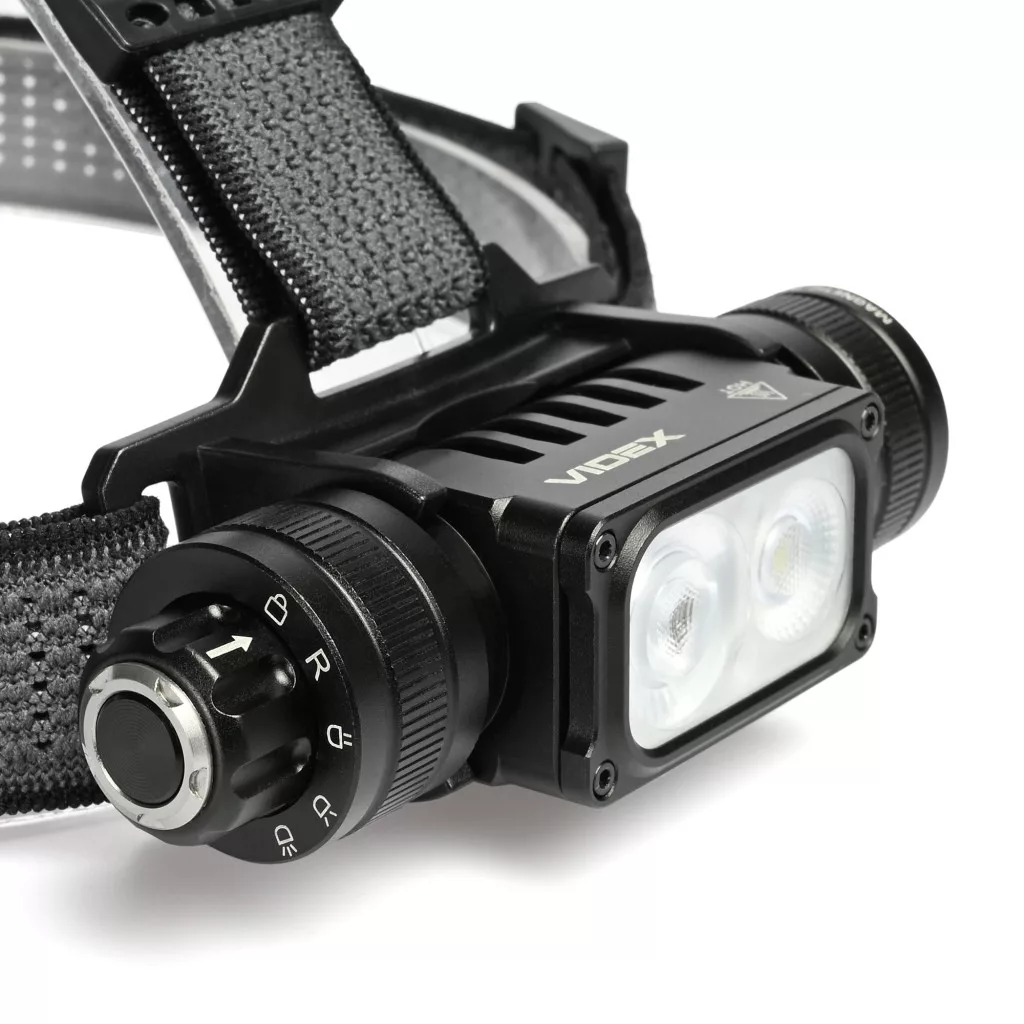

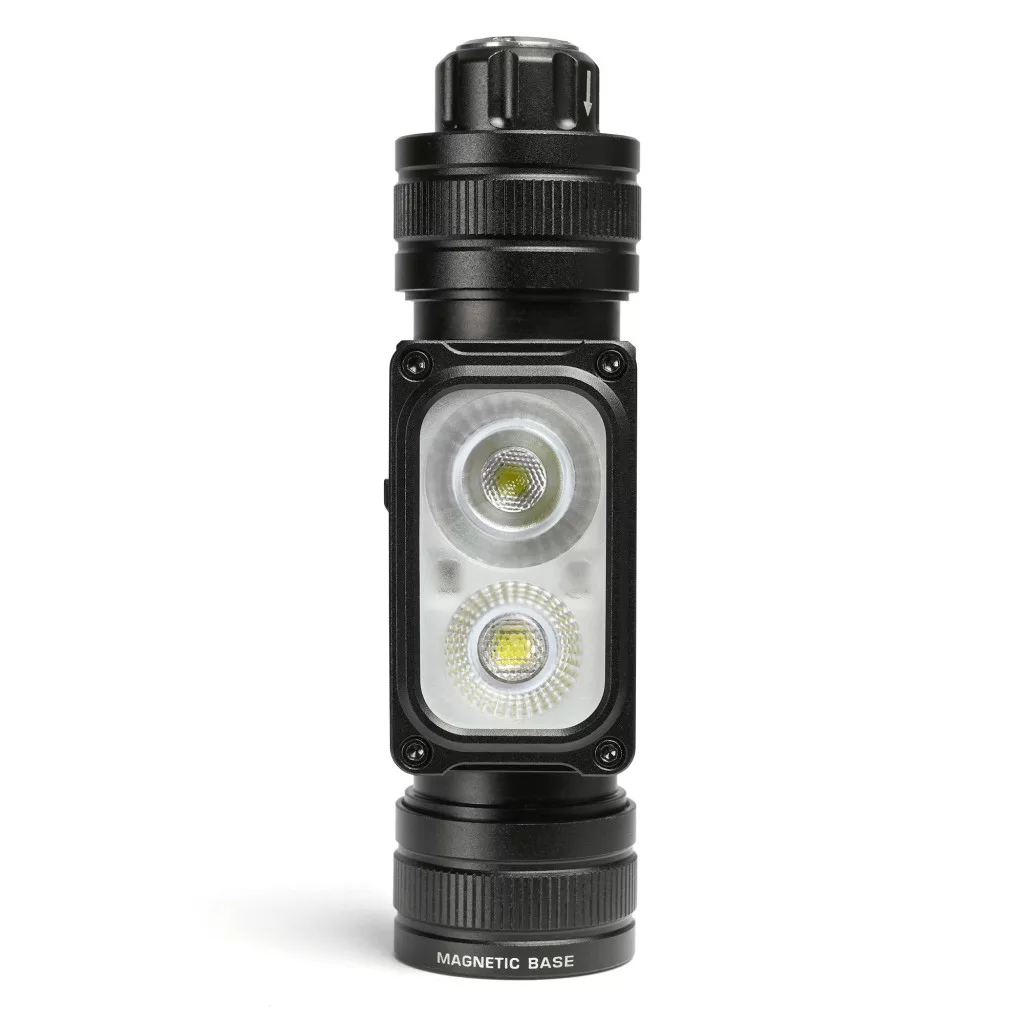

LED Headlamp VIDEX VLF-H066A 2000Lm 5000K has both white and red light. The white light has long-range and flood modes. Thanks to its magnetic base, mechanical switch, dust and water protection rating (IP67), and drop resistance up to 2m, it is suitable for a wide range of applications. It operates on a rechargeable 18650 Li-ion battery with a capacity of 2200mAh.

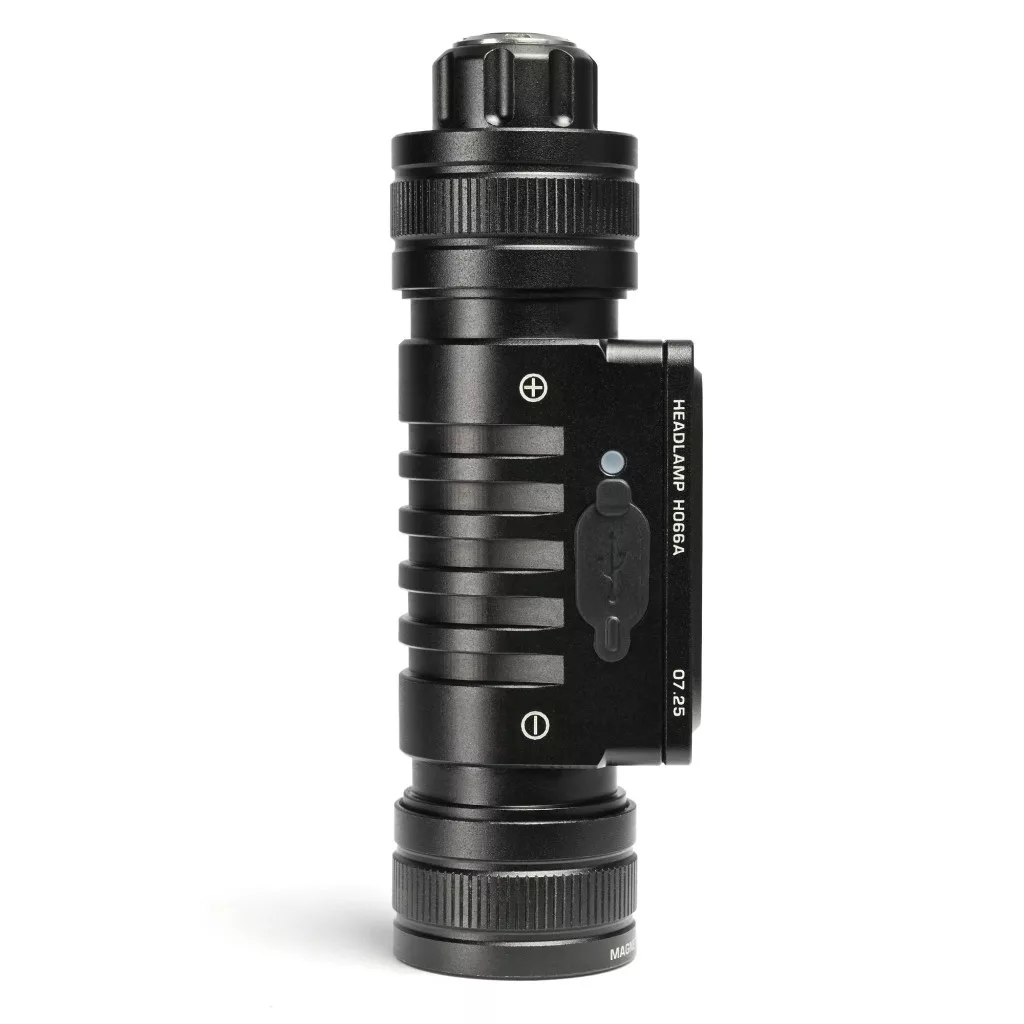

HEADLAMP CONTROL The headlamp modes are controlled using the power button and mechanical switch located on its body. With these controls, you can turn the headlamp on or off, lock it, switch between brightness levels and colors, and activate the battery indicator. 1. To turn on the headlamp, rotate the switch clockwise from the "Lock" position to the desired mode. 2. In white long-range, white flood, or red light modes, switch between brightness levels by pressing the power button. 3. To turn off the headlamp, press and hold the power button for 0.5 seconds to turn off the light, or rotate the switch back to the "Lock" position to turn off and lock the headlamp.
HEADLAMP MODES SPOT HIGH (Maximum brightness white long-range mode). Light output: 1000Lm. Beam distance: 130m. Runtime: 1h 45min. Luminous intensity: 3000cd. SPOT MIDDLE (Medium brightness white long-range mode). Light output: 400Lm. Beam distance: 100m. Runtime: 3h. Luminous intensity: 2500cd. SPOT LOW (Minimum brightness white long-range mode). Light output: 70Lm. Beam distance: 30m. Runtime: 25h. Luminous intensity: 70cd. TURBO (Simultaneous white long-range and flood mode). Light output: 2000Lm. Beam distance: 150m. Runtime: 1h 30min. Luminous intensity: 4000cd. FLOOD HIGH (Maximum brightness white flood mode). Light output: 1000Lm. Beam distance: 80m. Runtime: 1h 45min. Luminous intensity: 1700cd. FLOOD MIDDLE (Medium brightness white flood mode). Light output: 150Lm. Beam distance: 30m. Runtime: 7h. Luminous intensity: 217cd. FLOOD LOW (Minimum brightness white flood mode). Light output: 5Lm. Beam distance: 10m. Runtime: 280h. Luminous intensity: 20cd. RED HIGH (Maximum brightness red light mode). Light output: 15Lm. Beam distance: 10m. Runtime: 10h. Luminous intensity: 20cd. RED LOW (Minimum brightness red light mode). Light output: 5Lm. Beam distance: 8m. Runtime: 18h. Luminous intensity: 15cd. RED FLASH (Red flashing mode). Light output: 5Lm. Beam distance: 8m. Runtime: 36h. Luminous intensity: 15cd.
Battery runtime was tested with the standard VIDEX 18650 Li-ion 2200mAh battery at 21±3°C and 50–80% humidity. Actual performance may vary depending on environment and battery type. The headlamp automatically remembers the selected mode.

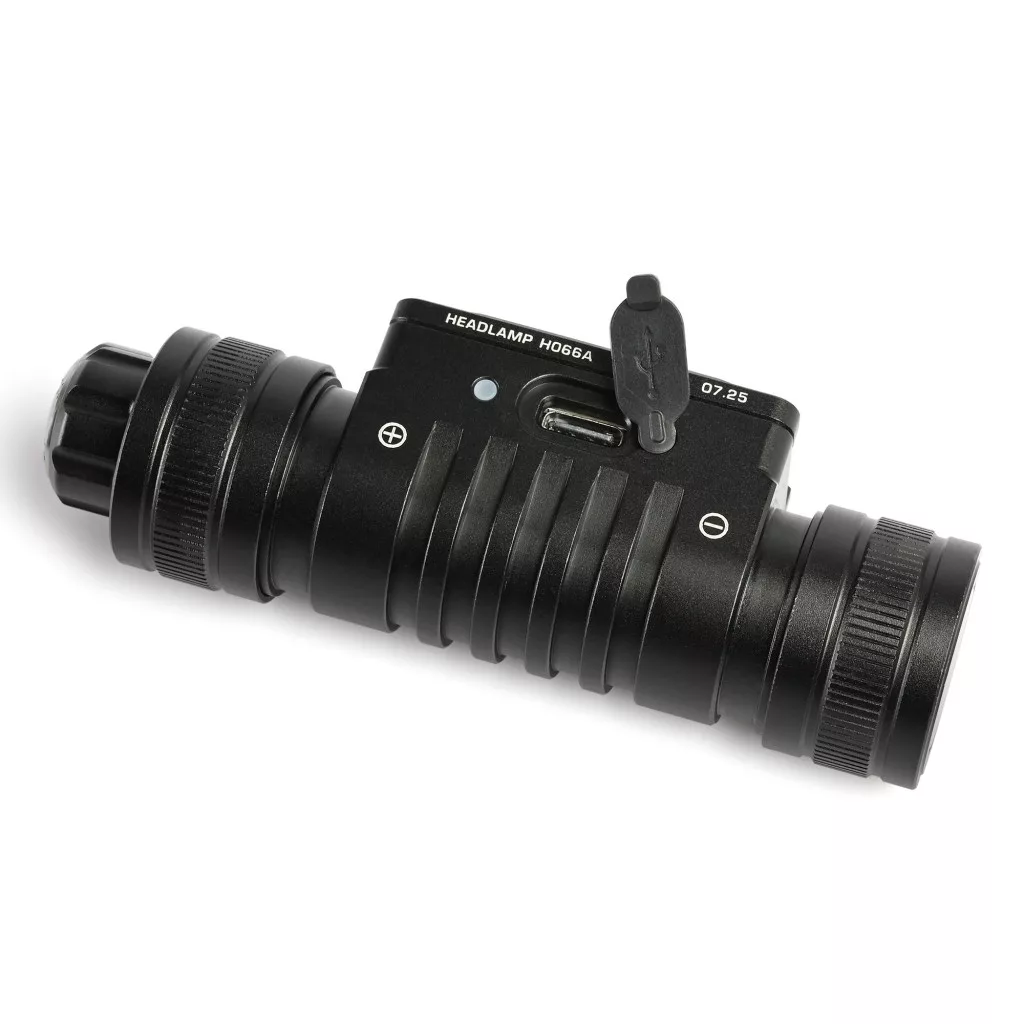

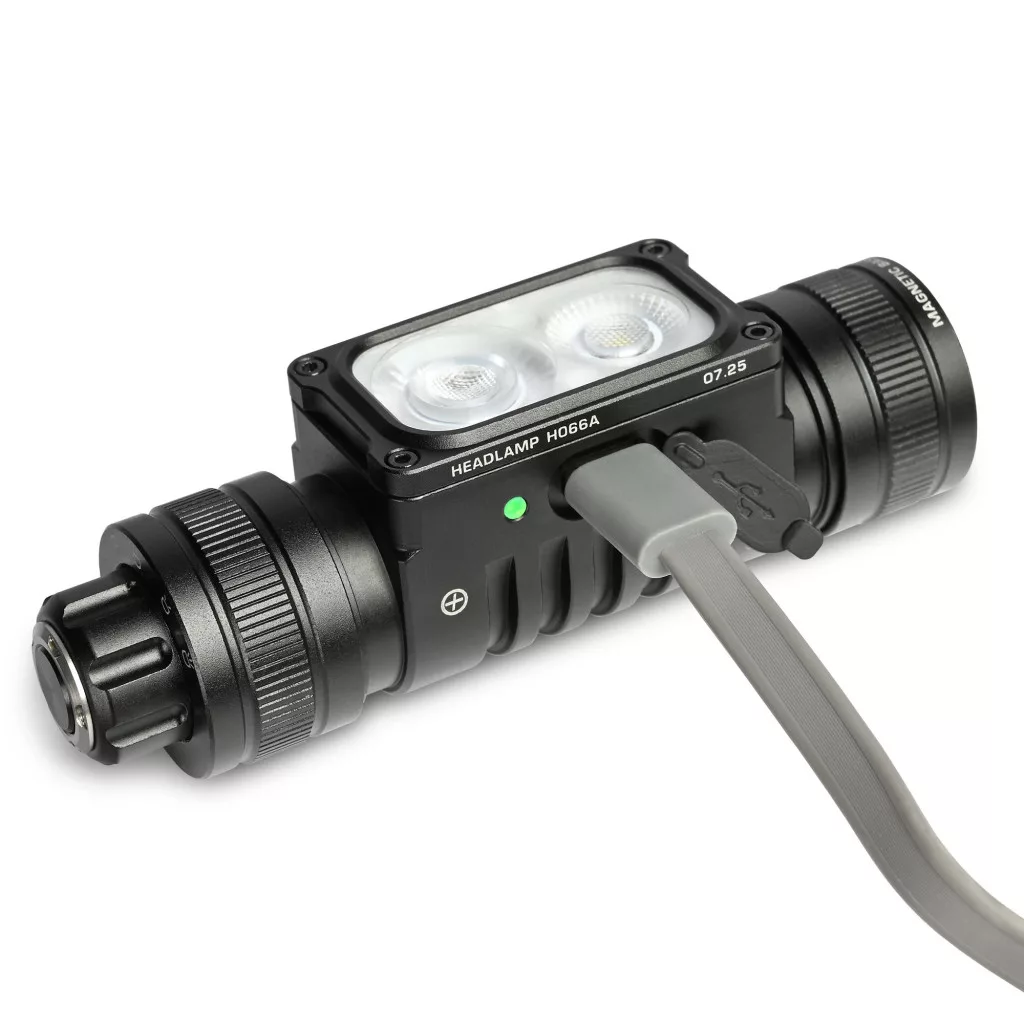

CHARGING Charge the headlamp using the supplied USB-C charging cable. To charge, turn off the headlamp and open the protective silicone cap. Connect the USB-A end of the cable to a charger and the USB-C end to the headlamp. During charging, the indicator will glow red. When fully charged, the indicator turns green. After charging, disconnect the cable and securely close the protective cap to prevent water or dust from entering the headlamp.
If the headlamp is off, a single press of the power button activates the LED indicator to display the remaining battery level. The indicator stays visible for 3 seconds unless turned off earlier by another single press. Indicator colors: - Green: Fully charged (100–80%). - Green blinking: 79–50% - Red: 49–25%. - Red blinking: 24–1%.
WARNING! Do not use the headlamp while charging. Warranty is 3 years for the headlamp and 1 year for the battery.
HEADLAMP CONTROL The headlamp modes are controlled using the power button and mechanical switch located on its body. With these controls, you can turn the headlamp on or off, lock it, switch between brightness levels and colors, and activate the battery indicator. 1. To turn on the headlamp, rotate the switch clockwise from the "Lock" position to the desired mode. 2. In white long-range, white flood, or red light modes, switch between brightness levels by pressing the power button. 3. To turn off the headlamp, press and hold the power button for 0.5 seconds to turn off the light, or rotate the switch back to the "Lock" position to turn off and lock the headlamp.
HEADLAMP MODES SPOT HIGH (Maximum brightness white long-range mode). Light output: 1000Lm. Beam distance: 130m. Runtime: 1h 45min. Luminous intensity: 3000cd. SPOT MIDDLE (Medium brightness white long-range mode). Light output: 400Lm. Beam distance: 100m. Runtime: 3h. Luminous intensity: 2500cd. SPOT LOW (Minimum brightness white long-range mode). Light output: 70Lm. Beam distance: 30m. Runtime: 25h. Luminous intensity: 70cd. TURBO (Simultaneous white long-range and flood mode). Light output: 2000Lm. Beam distance: 150m. Runtime: 1h 30min. Luminous intensity: 4000cd. FLOOD HIGH (Maximum brightness white flood mode). Light output: 1000Lm. Beam distance: 80m. Runtime: 1h 45min. Luminous intensity: 1700cd. FLOOD MIDDLE (Medium brightness white flood mode). Light output: 150Lm. Beam distance: 30m. Runtime: 7h. Luminous intensity: 217cd. FLOOD LOW (Minimum brightness white flood mode). Light output: 5Lm. Beam distance: 10m. Runtime: 280h. Luminous intensity: 20cd. RED HIGH (Maximum brightness red light mode). Light output: 15Lm. Beam distance: 10m. Runtime: 10h. Luminous intensity: 20cd. RED LOW (Minimum brightness red light mode). Light output: 5Lm. Beam distance: 8m. Runtime: 18h. Luminous intensity: 15cd. RED FLASH (Red flashing mode). Light output: 5Lm. Beam distance: 8m. Runtime: 36h. Luminous intensity: 15cd.
Battery runtime was tested with the standard VIDEX 18650 Li-ion 2200mAh battery at 21±3°C and 50–80% humidity. Actual performance may vary depending on environment and battery type. The headlamp automatically remembers the selected mode.
CHARGING Charge the headlamp using the supplied USB-C charging cable. To charge, turn off the headlamp and open the protective silicone cap. Connect the USB-A end of the cable to a charger and the USB-C end to the headlamp. During charging, the indicator will glow red. When fully charged, the indicator turns green. After charging, disconnect the cable and securely close the protective cap to prevent water or dust from entering the headlamp.
If the headlamp is off, a single press of the power button activates the LED indicator to display the remaining battery level. The indicator stays visible for 3 seconds unless turned off earlier by another single press. Indicator colors: - Green: Fully charged (100–80%). - Green blinking: 79–50% - Red: 49–25%. - Red blinking: 24–1%.
WARNING! Do not use the headlamp while charging. Warranty is 3 years for the headlamp and 1 year for the battery.
* A termékleírás tájékoztató jellegű, és automatikusan fordított szöveget is tartalmazhat. A képek illusztrációk, a pontos adatokért kérjük, ellenőrizze a gyártói adatlapot.
