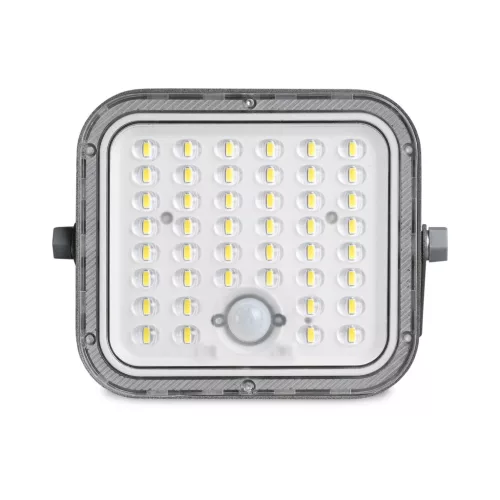

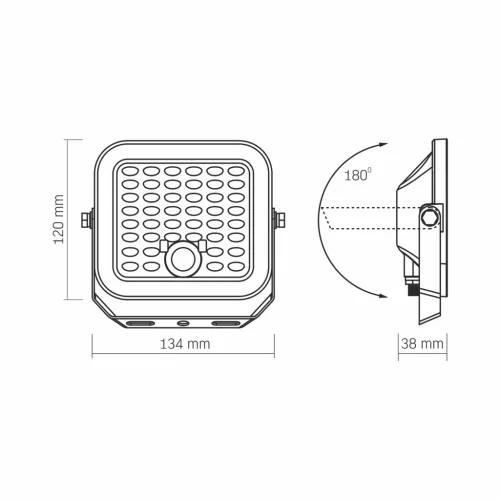

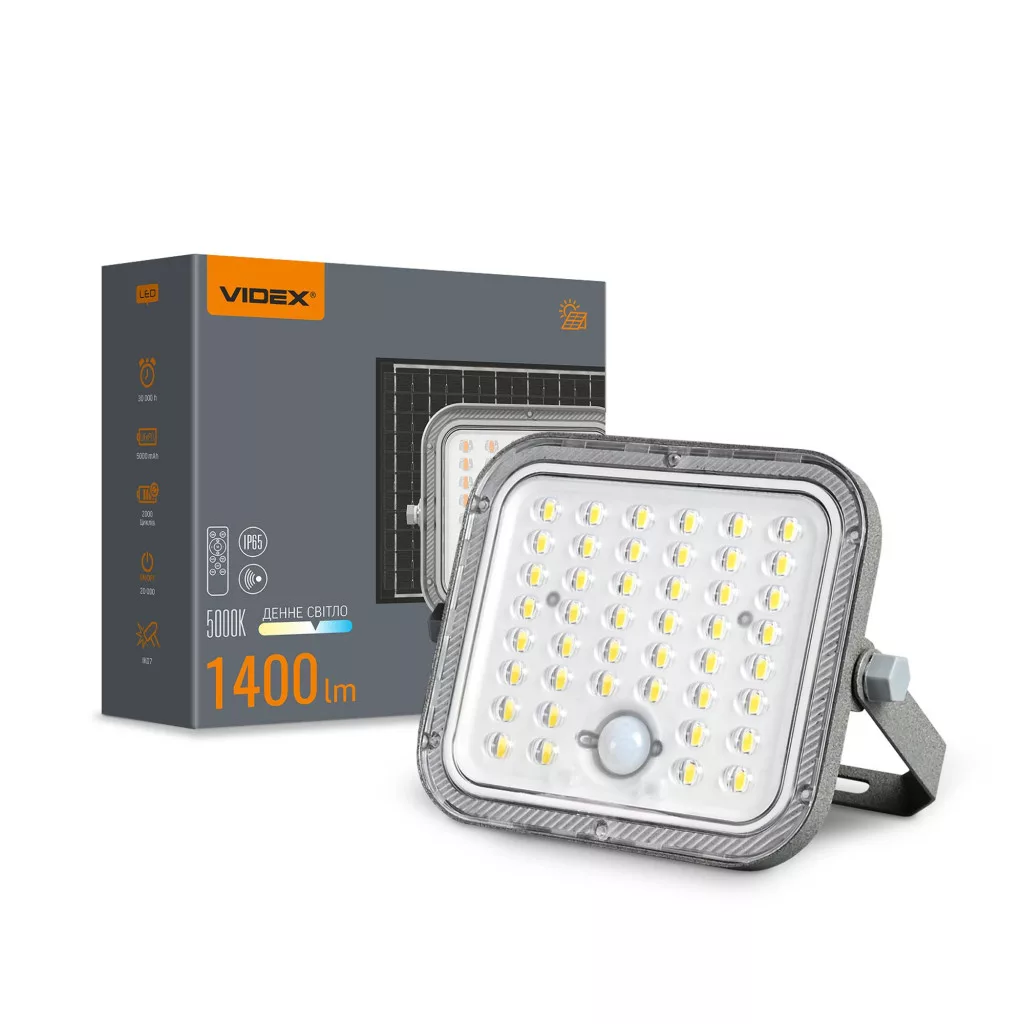

LED Solar Floodlight with motion sensor VIDEX VL-FSO4-205-S 1400Lm 5000K
Gyártói elnevezés:
LED Solar Floodlight with motion sensor VIDEX VL-FSO4-205-S 1400Lm 5000K

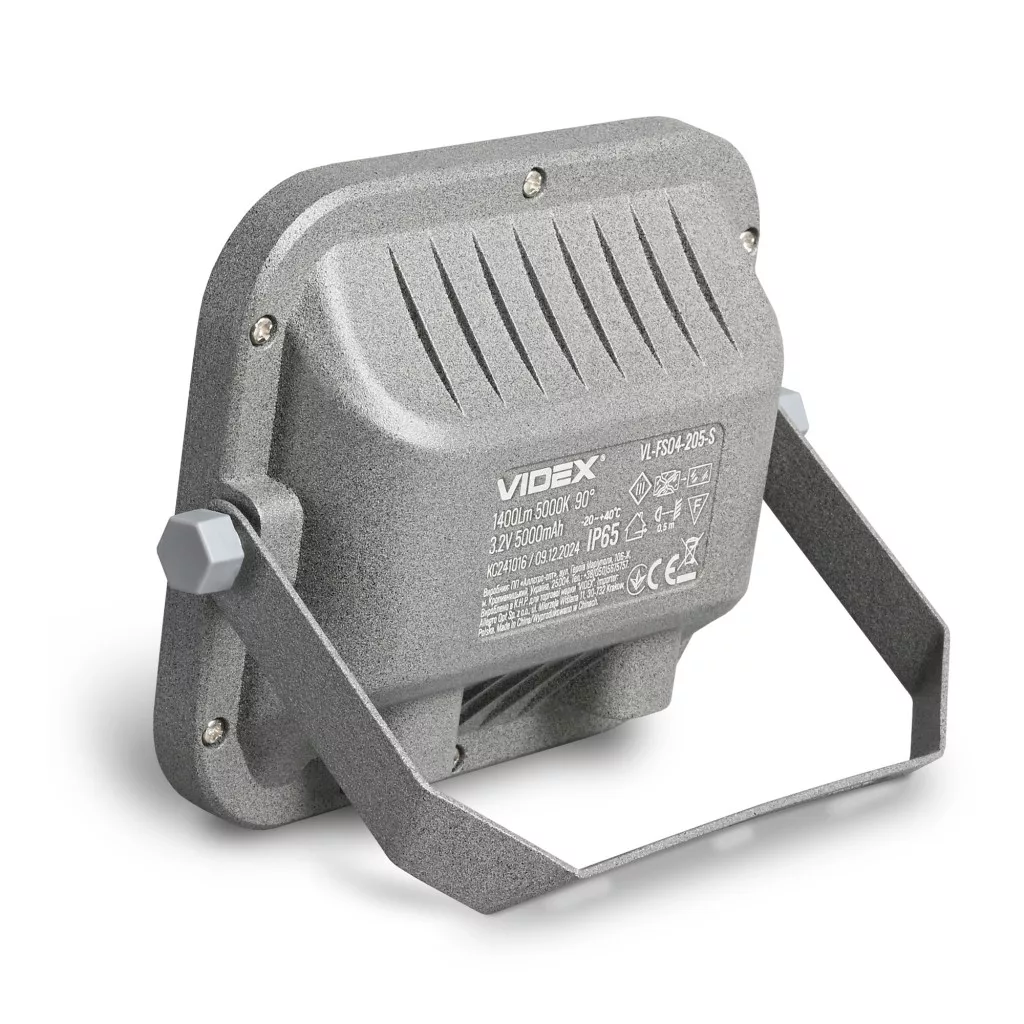

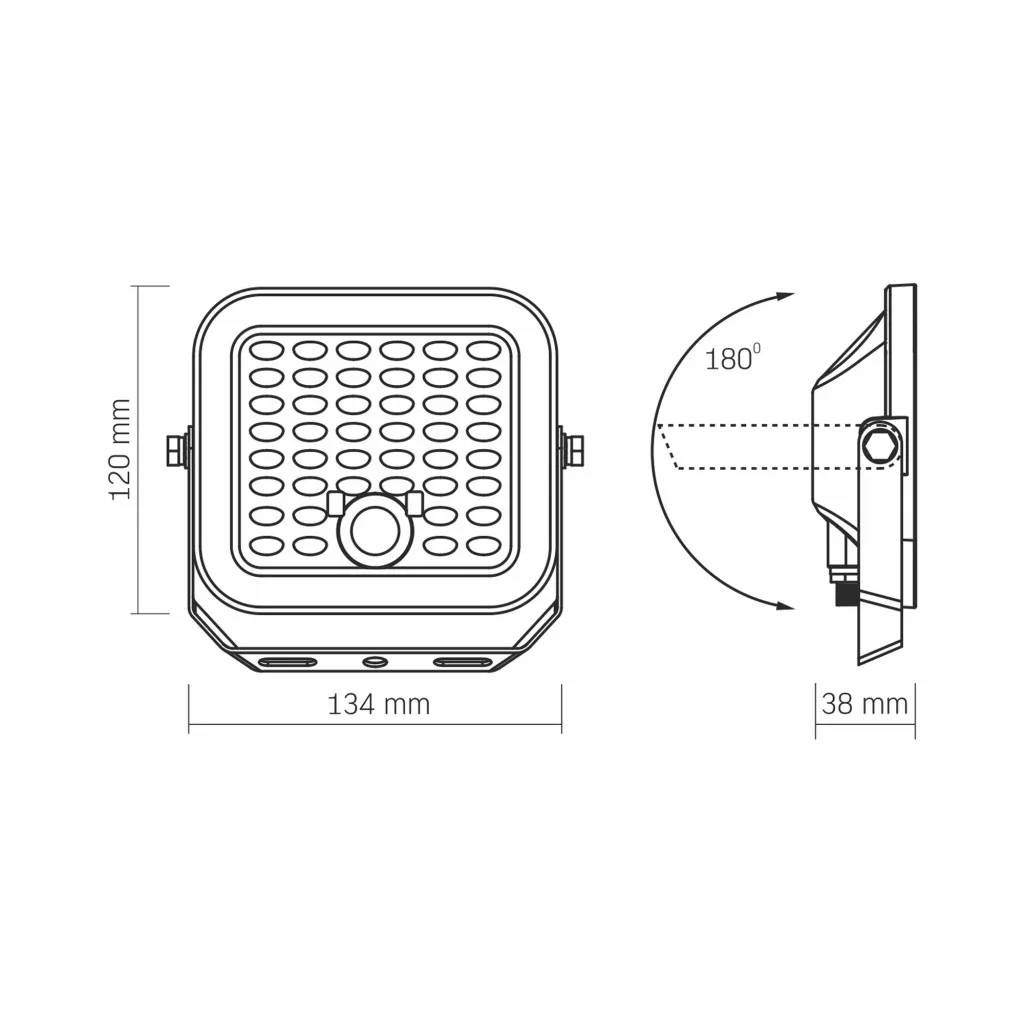

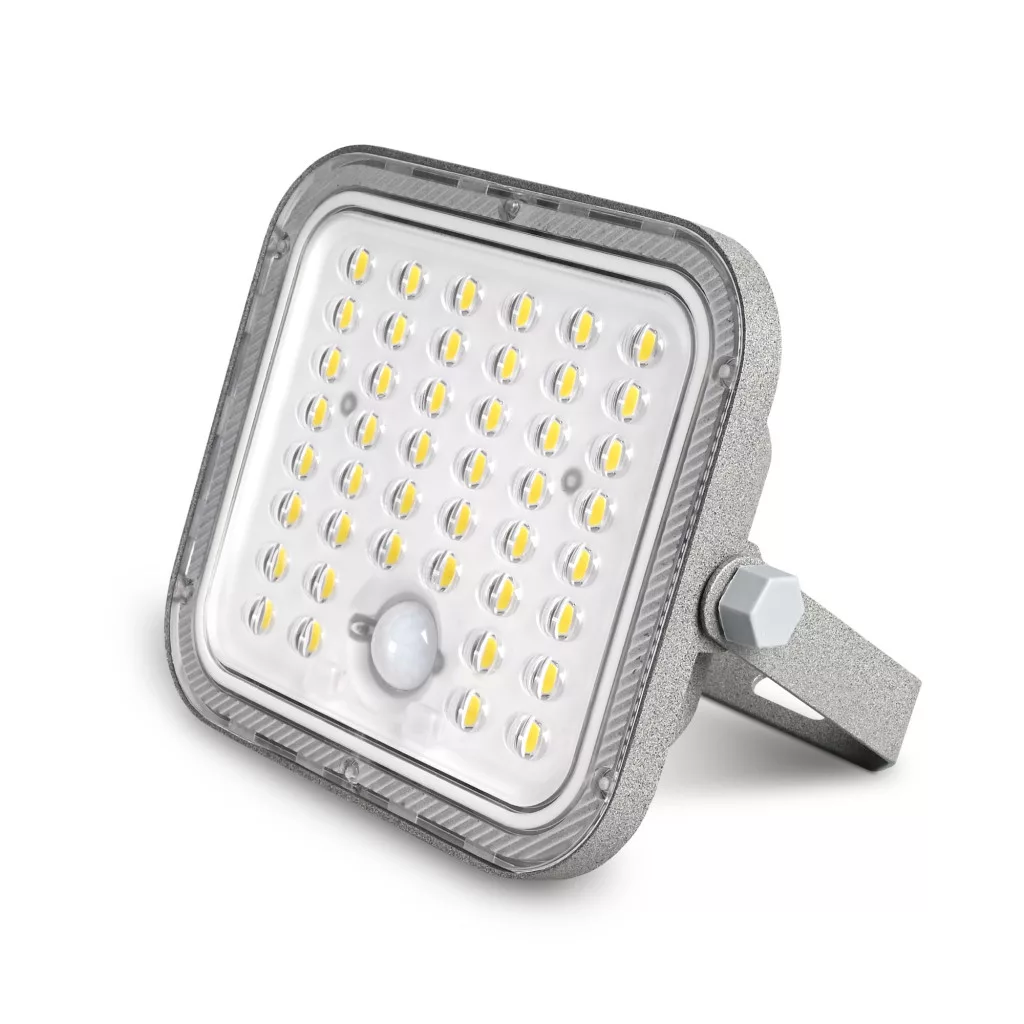

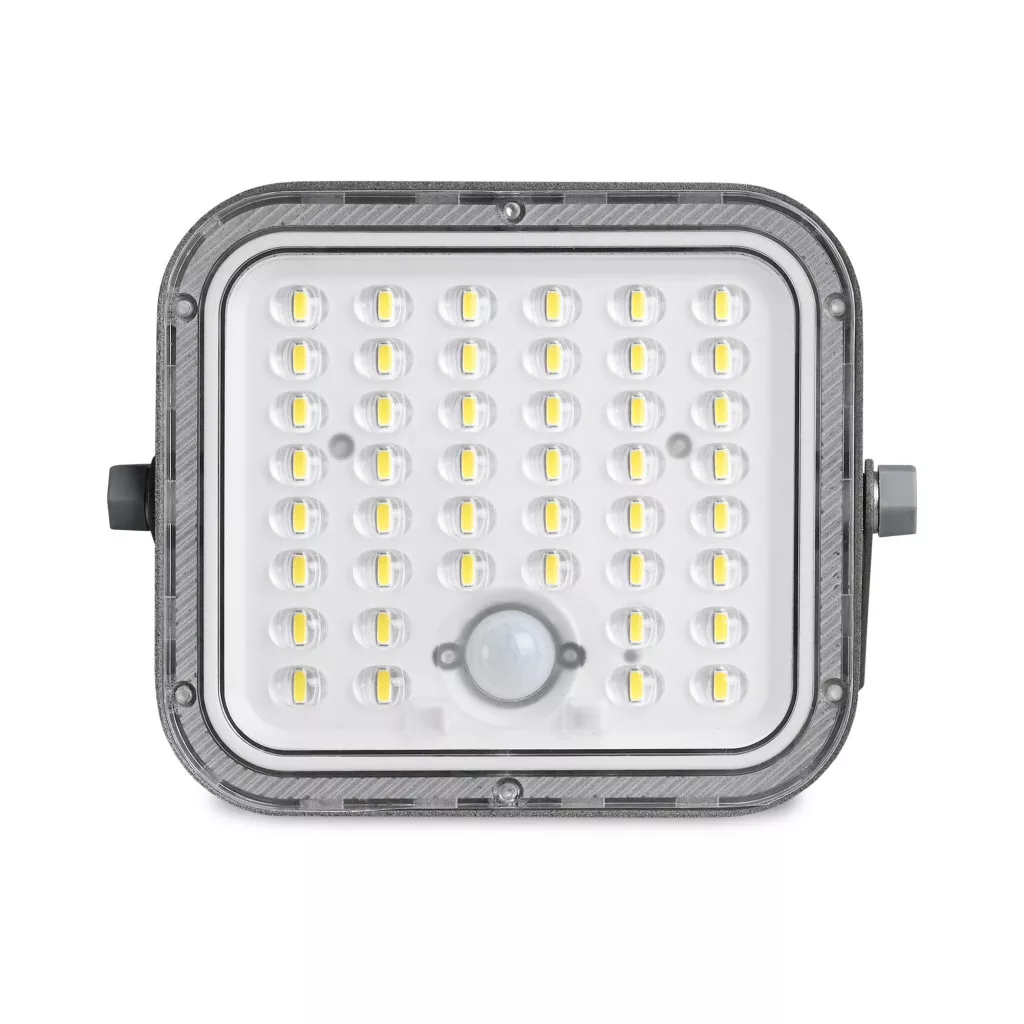

LED Solar Floodlight VIDEX VL-FSO4-205-S is designed for autonomous illumination of open areas, parks, and residential surroundings. It is mounted on vertical walls. The floodlight operates completely independently and is powered by a solar panel. The built-in rechargeable battery charges throughout the day using sunlight, allowing the floodlight to operate autonomously for up to 10 hours. This LED floodlight is ideal for locations where connecting to the electrical grid is not possible or where the electrical load is very limited. The main advantage of using a solar-powered floodlight is the absence of any electricity costs, as well as the following benefits:
- The light source is high-quality LEDs, which provide uniform, bright, and directional lighting. - Long service life without the need for maintenance. - A built-in motion sensor (PIR) with an 8-meter detection range and a detection angle of 120°. - IP65 ingress protection, allowing the floodlight to be used in any weather conditions.

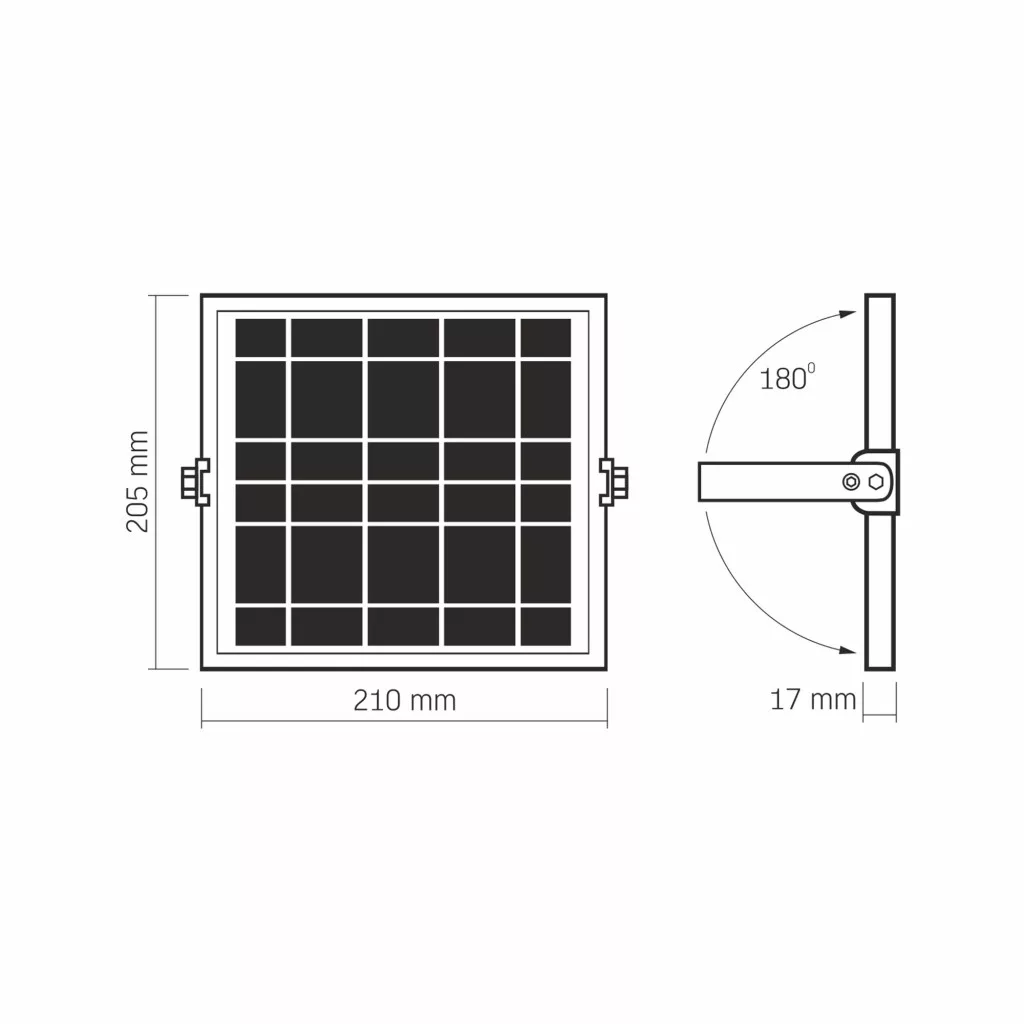

TECHNICAL SPECIFICATIONS: - Luminous flux – 1400 Lm - Color temperature – 5000K (daylight) - Supports brightness adjustment (dimmer) - Color rendering index – Ra>80 - Beam angle – 90° - Battery type – LiFePO4, 3.2V, 5000mAh - Battery capacity – 16Wh - Solar panel parameters – 6V, 6W - Operated via remote control powered by a CR2032 battery - Cable length – 2m - Service life – 30 000 hours - Number of ON/OFF cycles – 20 000 - Operating time – up to 10 hours - Charging time – 5–8 hours (in sunny weather) - Number of charge–discharge cycles – 2000 - Recommended installation height – 3–4m - Resistance to environmental and mechanical impacts – IK07 impact protection - Electrical protection class – Class III - Warranty – 2 years

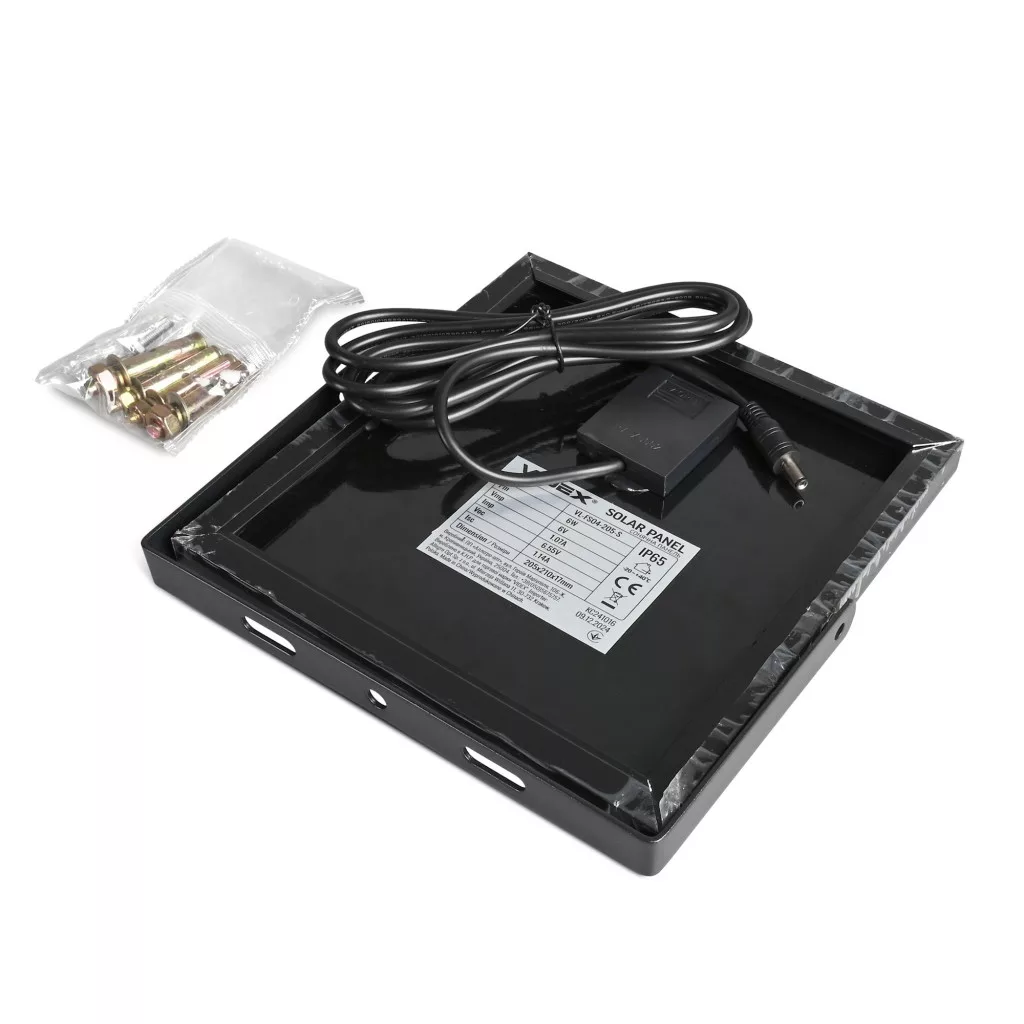

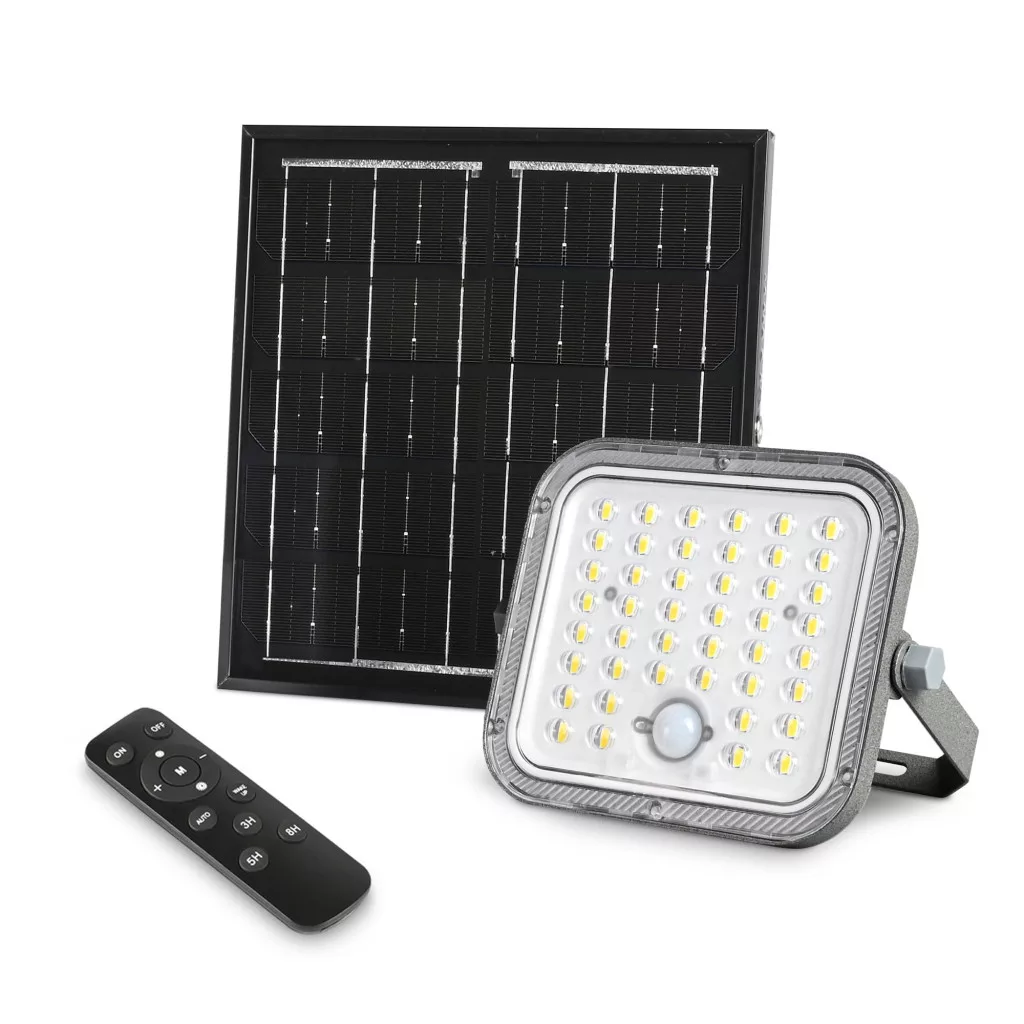

The set includes: the floodlight, solar panel, remote control, CR2032 battery for the remote, mounting screws, and user manual. The total weight of the set is 1.09 kg.
The product automatically turns on at night and turns off during daytime charging. The solar panel converts sunlight into electricity and charges the floodlight’s battery. Before first use, ensure the floodlight is fully charged for 8 hours under direct sunlight.
Turning the Floodlight ON/OFF

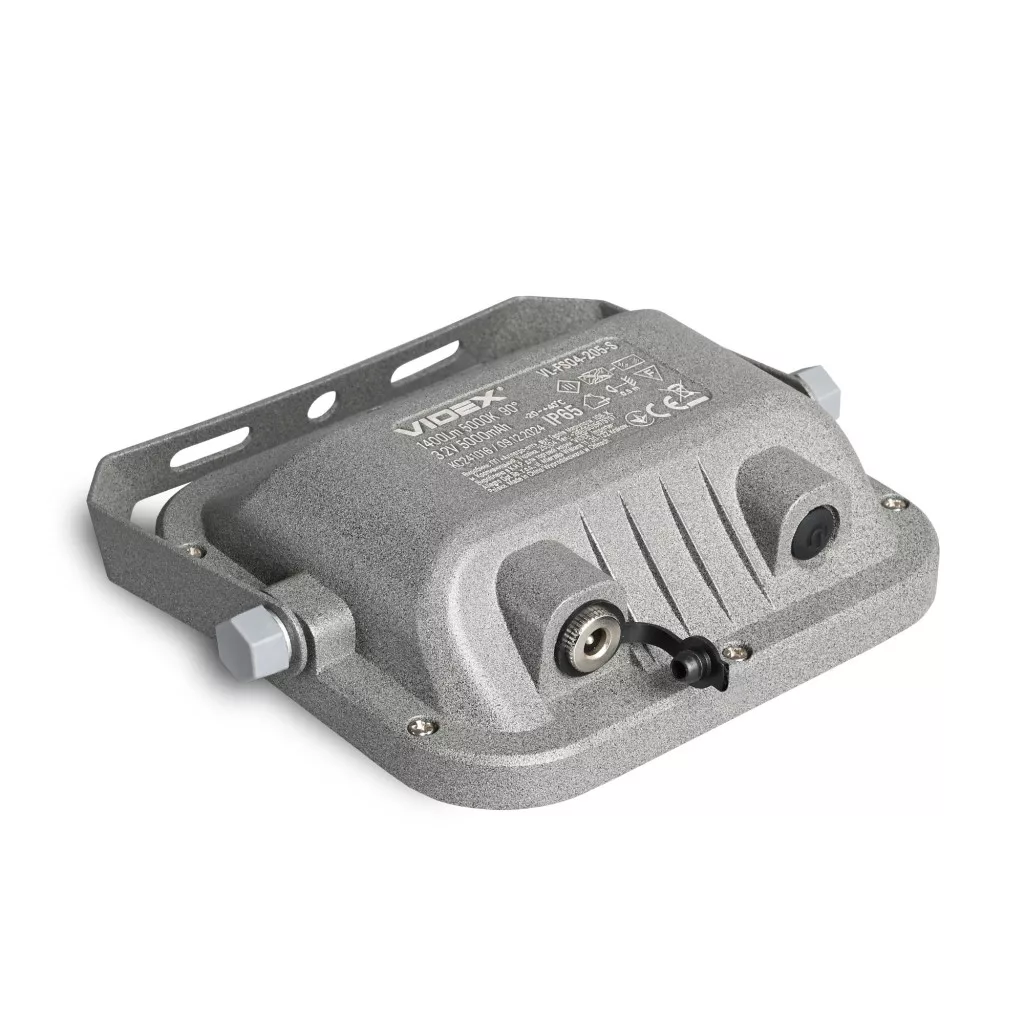

1. To activate the floodlight, press the button on its housing once. The floodlight will automatically enter motion-sensor mode. 2. To turn off the floodlight and put it into sleep mode, press and hold the same button for 3 seconds.
REMOTE CONTROL
Note: The number corresponds to the button number. Refer to the user manual for details.
1. Turn On (ON): Press once to turn on the floodlight. 2. Maximum Brightness: Operates at 100% brightness until the battery is depleted. 3. Button (+): Increases brightness by 5%. 4. Half Brightness: Operates at 50% brightness until the battery is depleted. 5. Automatic Mode (AUTO): Activates the floodlight’s automatic mode: for the first 3 hours it operates at 100% brightness; from the third to the sixth hour at 70% brightness; and from the sixth hour until it turns off at 30% brightness. When this mode is activated, all other modes, including the motion sensor, are disabled. 6. 3-Hour Auto-Off Timer (3H): The floodlight operates at 100% brightness for 3 hours, then automatically turns off. 7. 5-Hour Auto-Off Timer (5H): The floodlight operates at 100% brightness for 3 hours, at 70% brightness from the third to the fifth hour, then turns off automatically. 8. Turn Off (OFF): Press once to turn off. Double-press to enter sleep mode; in this mode, the floodlight will not operate. 9. Button (-): Decreases brightness by 5%. 10. Motion Sensor Mode (M): Press to activate the motion-sensor mode. When motion is detected within the sensor range, the light turns on at 100% brightness for 15 seconds. If no motion is detected, brightness remains at 10%. Brightness cannot be adjusted in this mode, meaning buttons 2, 3, 4, and 9 are disabled. To exit motion-sensor mode, activate any other mode using the buttons «AUTO», «3H», «5H», or «8H». 11. Wake Up (WAKE UP): After installation, press the «WAKE UP» button to wake the floodlight for first-time use. After this, the system can automatically charge and discharge. 12. 8-Hour Auto-Off Timer (8H): The floodlight operates at 100% brightness for the first 3 hours, at 70% brightness from the third to the sixth hour, at 30% brightness from the sixth to the eighth hour, then turns off automatically.
Recommendations and Safety Precautions:
• Sleep mode is enabled by the manufacturer by default to prevent accidental activation during transportation. Press the «WAKE UP» button to activate the device before use. • If the product needs to be stored for a long time, switch it back into sleep mode (double-press the «OFF» button). • A flashing red light indicates charging; a steady red light indicates a full charge. • Do not store the product with a fully discharged battery. • The LED light source is non-replaceable. The battery can be replaced only by the manufacturer or an authorized service agent. • Dispose of used or damaged products according to applicable regulations.
- The light source is high-quality LEDs, which provide uniform, bright, and directional lighting. - Long service life without the need for maintenance. - A built-in motion sensor (PIR) with an 8-meter detection range and a detection angle of 120°. - IP65 ingress protection, allowing the floodlight to be used in any weather conditions.
TECHNICAL SPECIFICATIONS: - Luminous flux – 1400 Lm - Color temperature – 5000K (daylight) - Supports brightness adjustment (dimmer) - Color rendering index – Ra>80 - Beam angle – 90° - Battery type – LiFePO4, 3.2V, 5000mAh - Battery capacity – 16Wh - Solar panel parameters – 6V, 6W - Operated via remote control powered by a CR2032 battery - Cable length – 2m - Service life – 30 000 hours - Number of ON/OFF cycles – 20 000 - Operating time – up to 10 hours - Charging time – 5–8 hours (in sunny weather) - Number of charge–discharge cycles – 2000 - Recommended installation height – 3–4m - Resistance to environmental and mechanical impacts – IK07 impact protection - Electrical protection class – Class III - Warranty – 2 years
The set includes: the floodlight, solar panel, remote control, CR2032 battery for the remote, mounting screws, and user manual. The total weight of the set is 1.09 kg.
The product automatically turns on at night and turns off during daytime charging. The solar panel converts sunlight into electricity and charges the floodlight’s battery. Before first use, ensure the floodlight is fully charged for 8 hours under direct sunlight.
Turning the Floodlight ON/OFF
1. To activate the floodlight, press the button on its housing once. The floodlight will automatically enter motion-sensor mode. 2. To turn off the floodlight and put it into sleep mode, press and hold the same button for 3 seconds.
REMOTE CONTROL
Note: The number corresponds to the button number. Refer to the user manual for details.
1. Turn On (ON): Press once to turn on the floodlight. 2. Maximum Brightness: Operates at 100% brightness until the battery is depleted. 3. Button (+): Increases brightness by 5%. 4. Half Brightness: Operates at 50% brightness until the battery is depleted. 5. Automatic Mode (AUTO): Activates the floodlight’s automatic mode: for the first 3 hours it operates at 100% brightness; from the third to the sixth hour at 70% brightness; and from the sixth hour until it turns off at 30% brightness. When this mode is activated, all other modes, including the motion sensor, are disabled. 6. 3-Hour Auto-Off Timer (3H): The floodlight operates at 100% brightness for 3 hours, then automatically turns off. 7. 5-Hour Auto-Off Timer (5H): The floodlight operates at 100% brightness for 3 hours, at 70% brightness from the third to the fifth hour, then turns off automatically. 8. Turn Off (OFF): Press once to turn off. Double-press to enter sleep mode; in this mode, the floodlight will not operate. 9. Button (-): Decreases brightness by 5%. 10. Motion Sensor Mode (M): Press to activate the motion-sensor mode. When motion is detected within the sensor range, the light turns on at 100% brightness for 15 seconds. If no motion is detected, brightness remains at 10%. Brightness cannot be adjusted in this mode, meaning buttons 2, 3, 4, and 9 are disabled. To exit motion-sensor mode, activate any other mode using the buttons «AUTO», «3H», «5H», or «8H». 11. Wake Up (WAKE UP): After installation, press the «WAKE UP» button to wake the floodlight for first-time use. After this, the system can automatically charge and discharge. 12. 8-Hour Auto-Off Timer (8H): The floodlight operates at 100% brightness for the first 3 hours, at 70% brightness from the third to the sixth hour, at 30% brightness from the sixth to the eighth hour, then turns off automatically.
Recommendations and Safety Precautions:
• Sleep mode is enabled by the manufacturer by default to prevent accidental activation during transportation. Press the «WAKE UP» button to activate the device before use. • If the product needs to be stored for a long time, switch it back into sleep mode (double-press the «OFF» button). • A flashing red light indicates charging; a steady red light indicates a full charge. • Do not store the product with a fully discharged battery. • The LED light source is non-replaceable. The battery can be replaced only by the manufacturer or an authorized service agent. • Dispose of used or damaged products according to applicable regulations.
* A termékleírás tájékoztató jellegű, és automatikusan fordított szöveget is tartalmazhat. A képek illusztrációk, a pontos adatokért kérjük, ellenőrizze a gyártói adatlapot.
