Mounting bracket BASE TP SV 360mm Fi 60mm grey Kobi

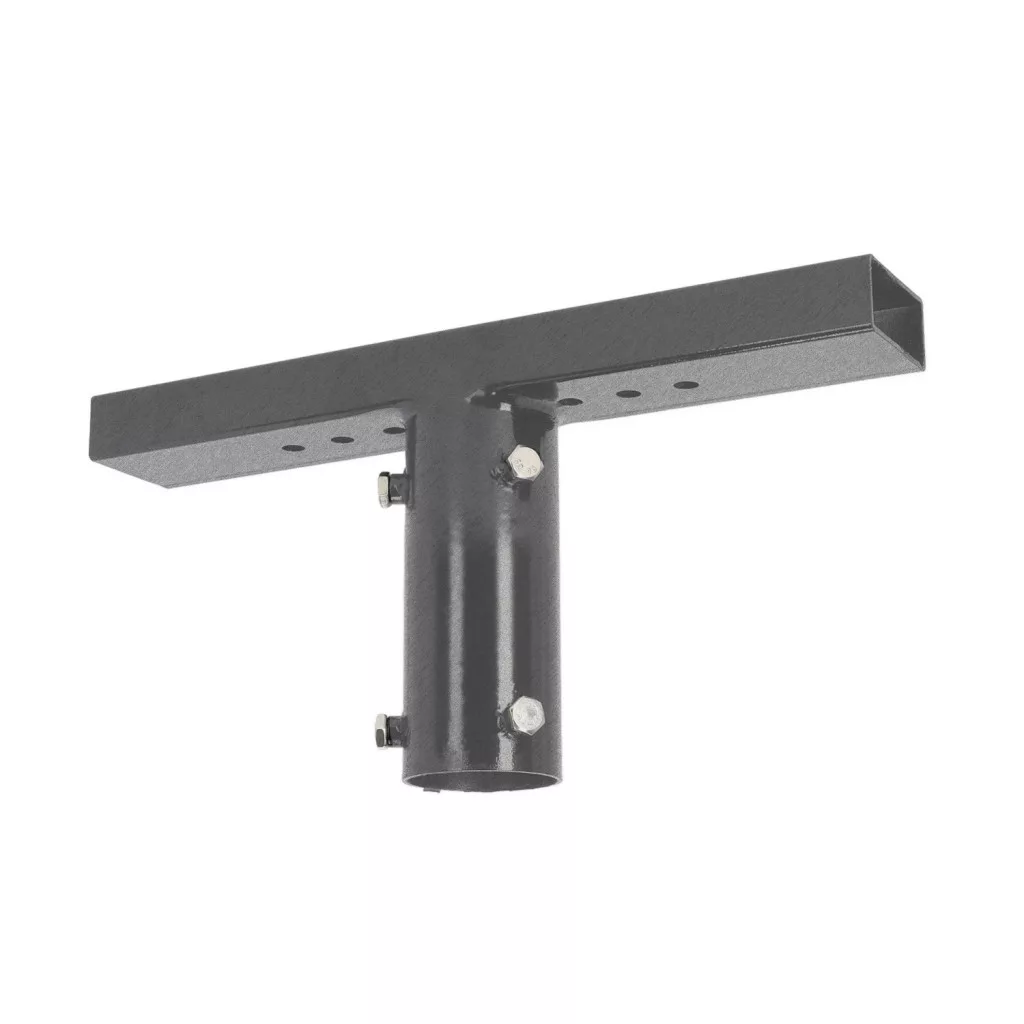

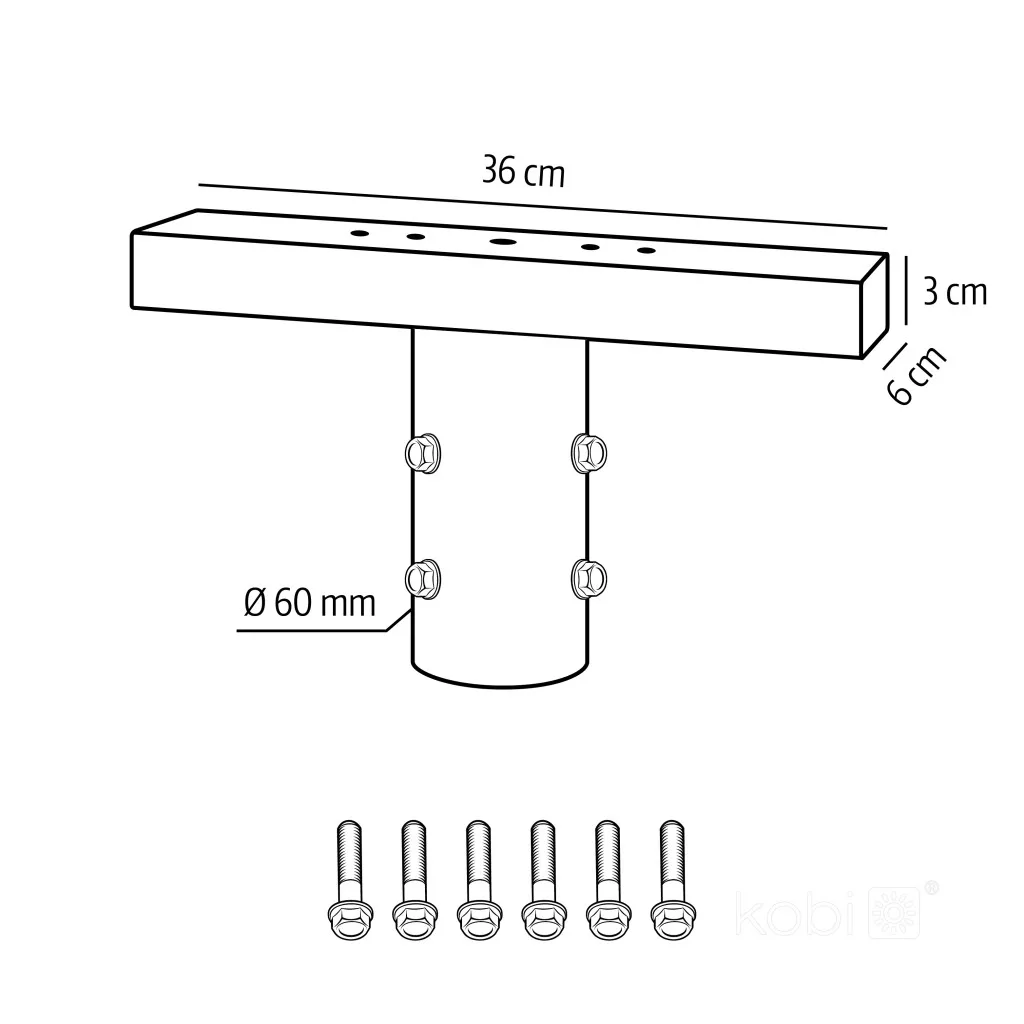

BASE TP SV Bracket 360 mm Ø60 mm grey – mounting bracket for the BASE SV system Kobi | 360 mm | Ø60 mm | Grey | BASE SV system The BASE TP SV 360 mm Ø60 mm bracket is a component of the modular BASE SV street pole system by Kobi, designed for mounting lighting fixtures. It ensures stable and aesthetic installation of luminaires on poles with a Ø60 mm diameter and forms an integral part of the complete system structure. Key product features: ✔ Purpose: mounting bracket for lighting fixtures ✔ Compatibility: BASE SV – modular street pole system ✔ Arm length: 360 mm ✔ Mounting diameter: Ø60 mm ✔ Colour: grey ✔ Construction: galvanized steel, powder-coated – resistant to weather conditions BASE SV system information: ✔ 3-meter poles – supplied in 3 sections (1 m each), extendable up to 5 m ✔ BASE SV 1 m module – for extending the pole height by 1 m ✔ BASE SV anchor 200 × 200 mm – for secure pole foundation mounting ✔ Base thickness: 8 mm ✔ Maximum load capacity: 25 kg ✔ Option to install a pole-mounted fuse box Applications: ✅ Street and park lighting ✅ Residential and recreational areas ✅ Squares and public spaces ✅ Projects requiring modular pole construction The BASE TP SV 360 mm Ø60 mm bracket is a durable and functional component of the BASE SV system, enabling safe and professional installation of lighting fixtures in outdoor lighting projects.

* A termékleírás tájékoztató jellegű, és automatikusan fordított szöveget is tartalmazhat. A képek illusztrációk, a pontos adatokért kérjük, ellenőrizze a gyártói adatlapot.
