LED Solar Wall Light with motion sensor VIDEX VL-BHSO-001-S 500Lm 5000K
Gyártói elnevezés:
LED Solar Wall Light with motion sensor VIDEX VL-BHSO-001-S 500Lm 5000K

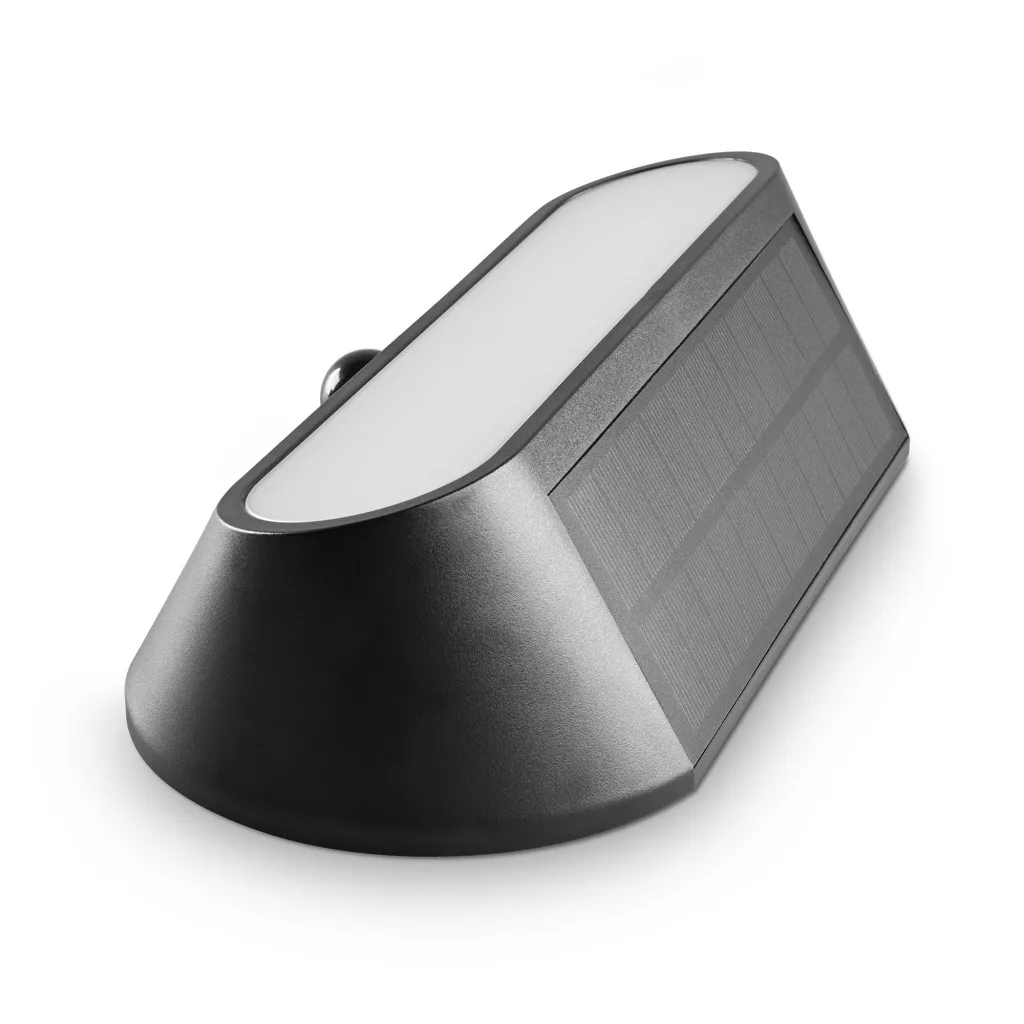

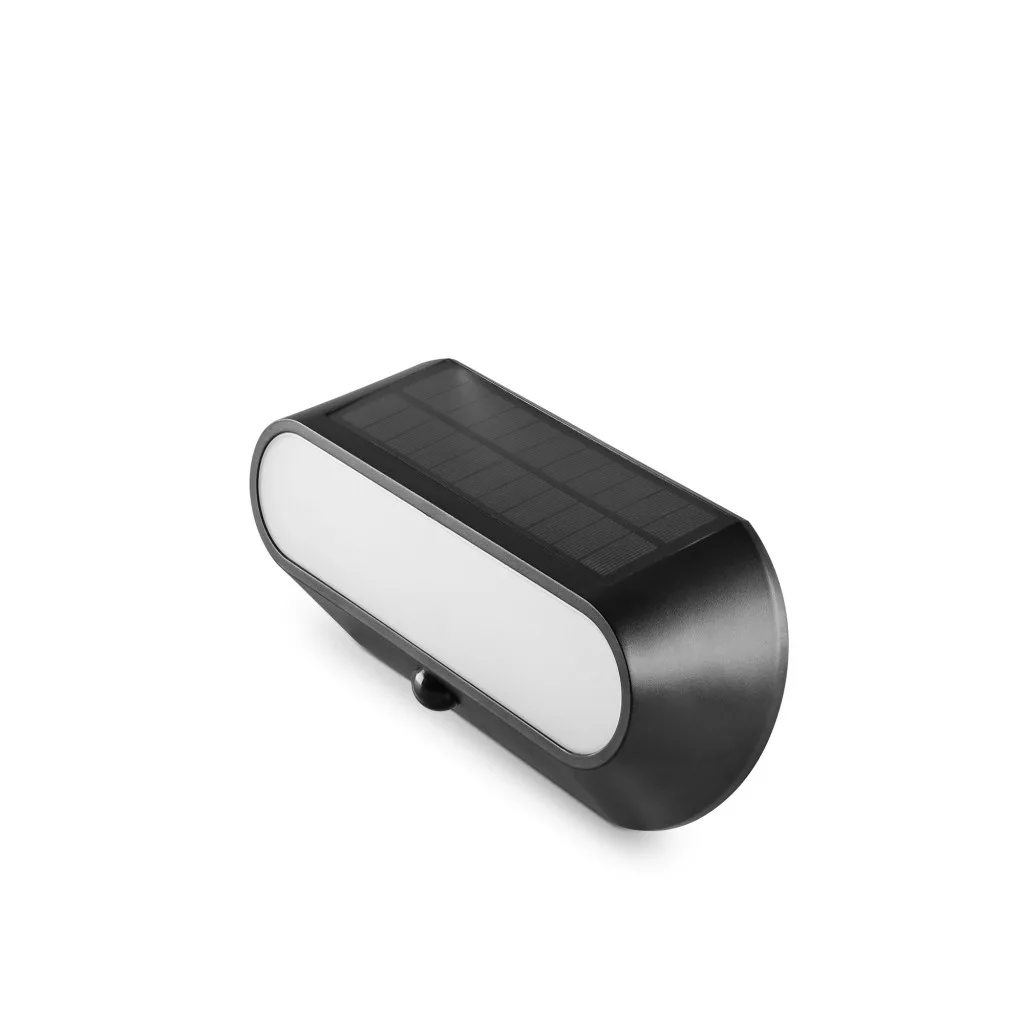

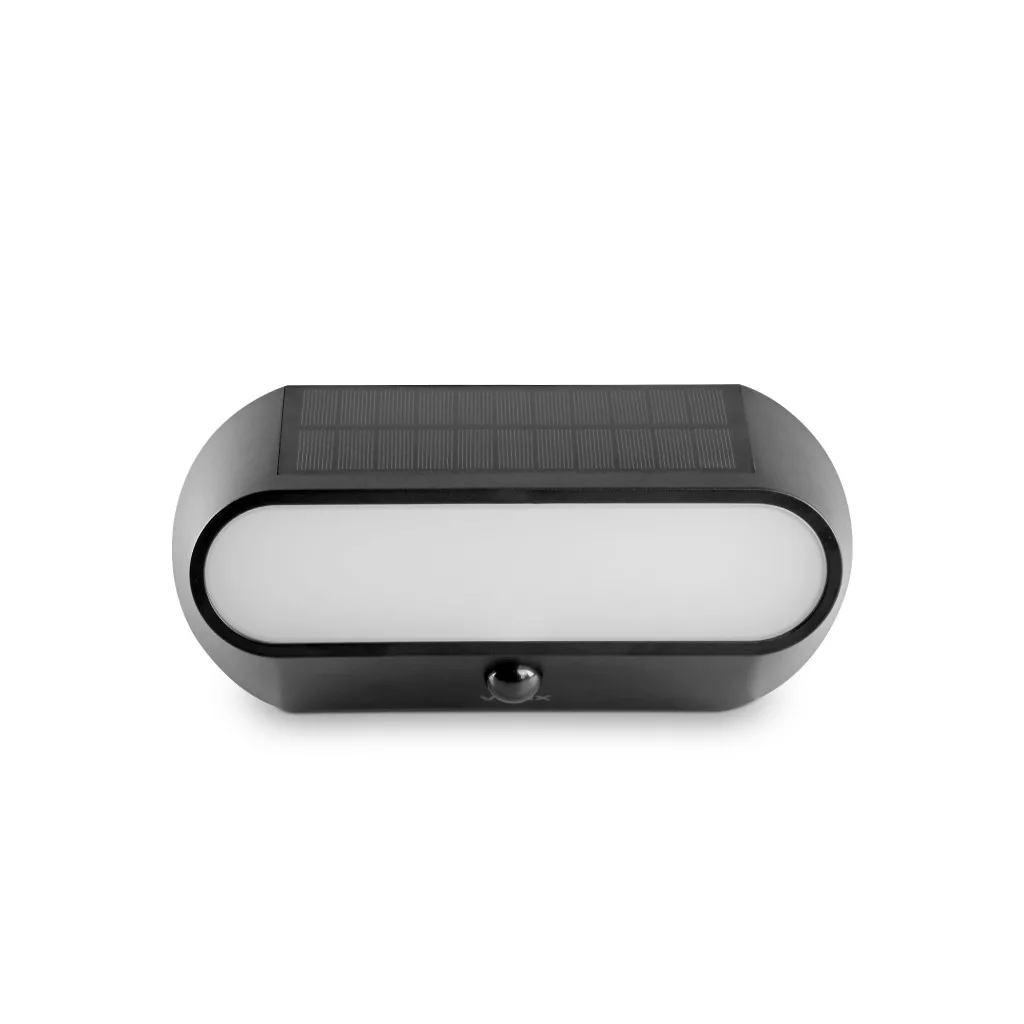

LED Solar Wall Light with motion sensor VIDEX VL-BHSO-001-S 500Lm 5000K is a modern and efficient luminaire designed for autonomous illumination of private yards, surrounding areas, pedestrian zones, and other outdoor spaces. The fixture is powered by a rechargeable battery and does not connect to the mains. The solar panel converts sunlight into electricity to charge the battery. This product is intended for outdoor use only.

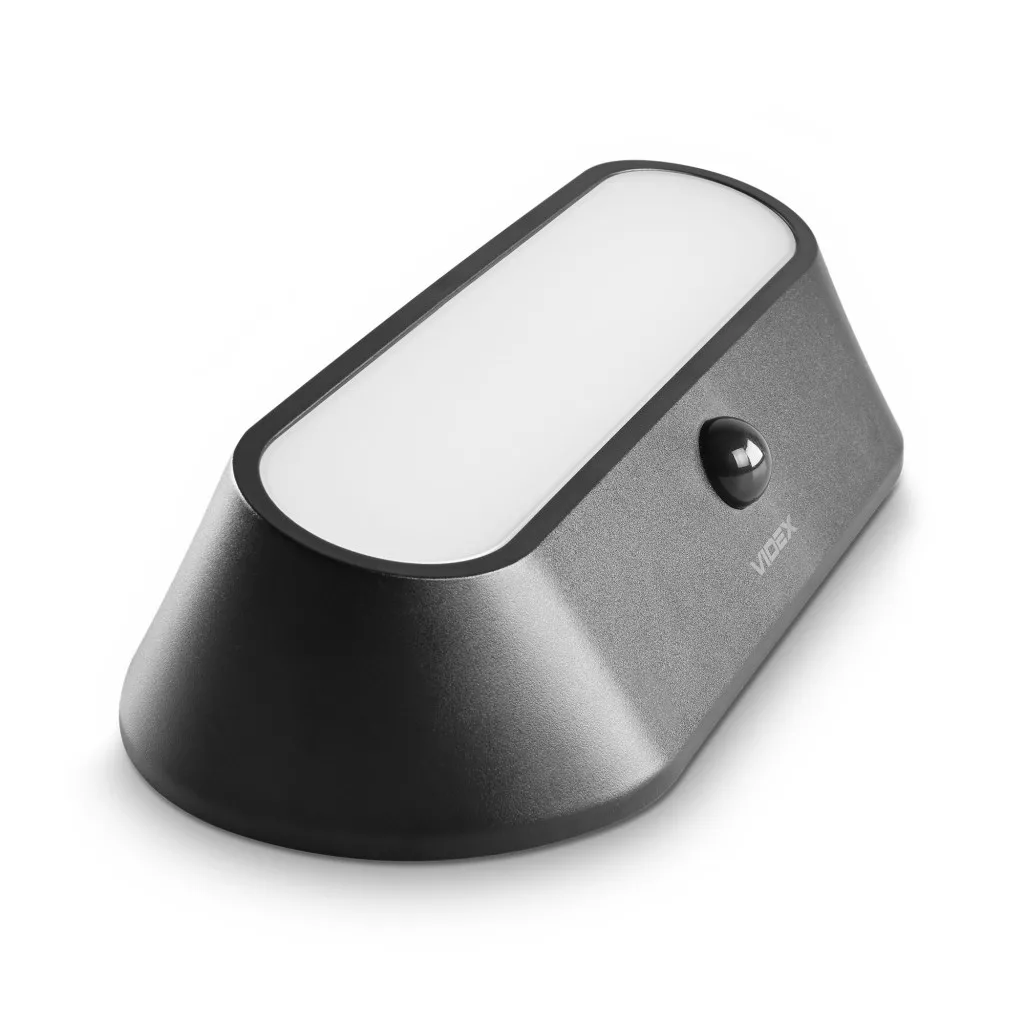

ADVANTAGES AND FEATURES OF THE LUMINAIRE: - high-efficiency solar panel and full autonomy - flexible lighting mode settings - equipped with a replaceable 18650 LiFePo4 battery - long battery lifespan >2000 charge/discharge cycles - built-in infrared motion sensor (PIR sensor) - ingress protection IP54 - impact protection class IK07 - 120° light beam angle - long battery runtime up to 10 hours - built-in intelligent internal circuit with protection against overcharge, over-discharge, and overvoltage
PACKAGE CONTENT: - Luminaire with Videx 18650 LiFePo4 3.2V 2000mAh battery - Mounting screws - User manual - Individual packaging

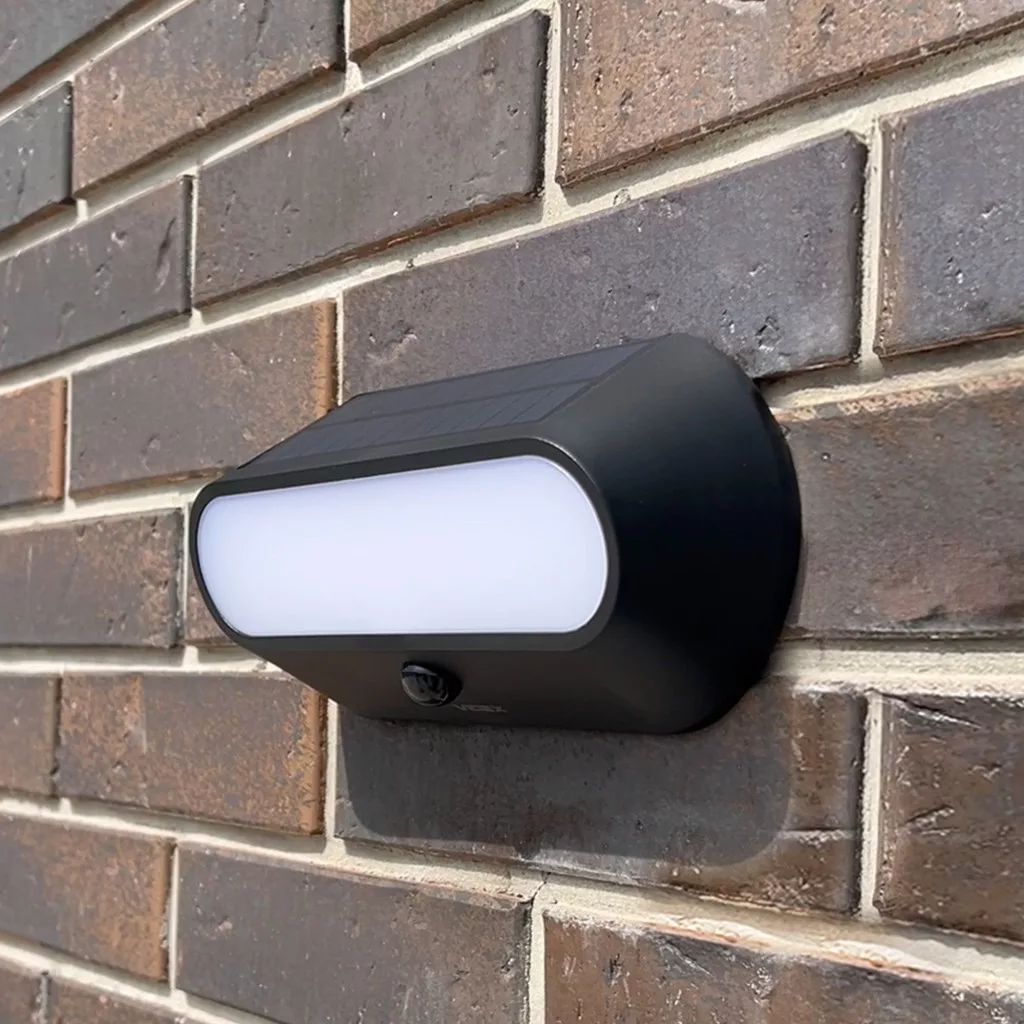

INSTALLATION INSTRUCTIONS Read the user manual before installation and use. The light and solar panel are integral components. The product is designed to be mounted on walls, fences, or building facades. Recommended installation height is 2–3 meters. Install the product in locations with sufficient sunlight. Do not install on the north-facing side.

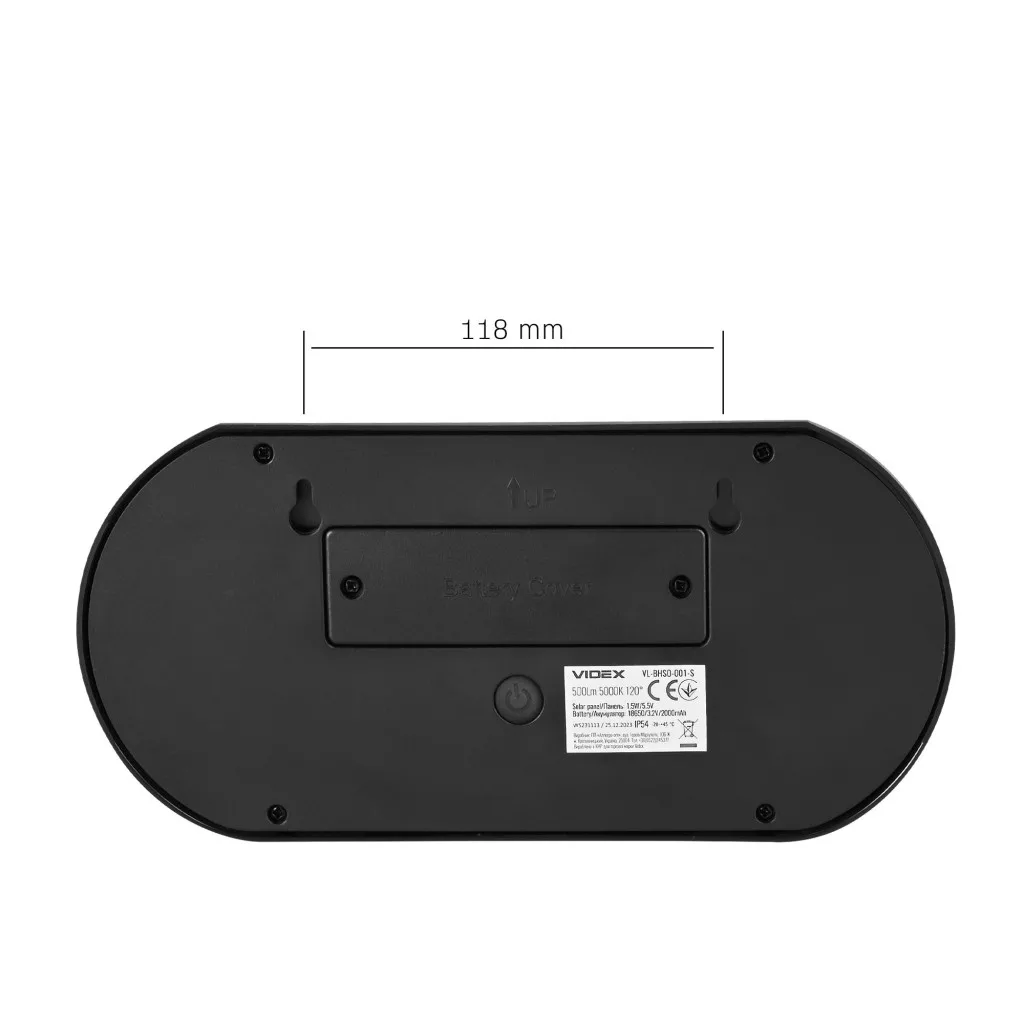

To install, follow these steps: a) Mark the drilling points and drill holes according to the mounting position; b) Insert screws, leaving a 5–6 mm gap between the screw head and the wall; c) Press the button on the luminaire to turn it on and select the operating mode (see manual); d) Mount the luminaire as shown in the diagram (see manual).
USAGE INSTRUCTIONS The light automatically turns on in sensor mode at dusk, i.e., when the ambient light level is below 15Lx. Press the button to select the desired mode, cycling through the options. After selecting a mode, no further switching is required. The luminaire memorizes the chosen mode and applies it every evening.
Note: - Before first use or after battery replacement, ensure the device completes a full charge cycle (approximately 4–6 hours) under direct sunlight. - Avoid shading the solar panel from trees, buildings, or other objects, as this may reduce performance.
OPERATING MODES: - Mode 1 (default): The light automatically turns on at 10% brightness at dusk. When motion is detected, it activates at 100% brightness for 30 seconds. If new motion is detected during these 30 seconds, the 100% brightness period extends by another 30 seconds. If no new motion is detected, it returns to 10% brightness (standby mode). - Mode 2: No light at dusk in standby mode. When motion is detected, it activates at 100% brightness for 30 seconds. If new motion is detected, the 100% brightness period extends by another 30 seconds. If no motion is detected, the light turns off completely. - Mode 3: Motion sensor function disabled; always operates at 10% brightness until the battery discharges or until dawn. - Mode 4: Device turned off.

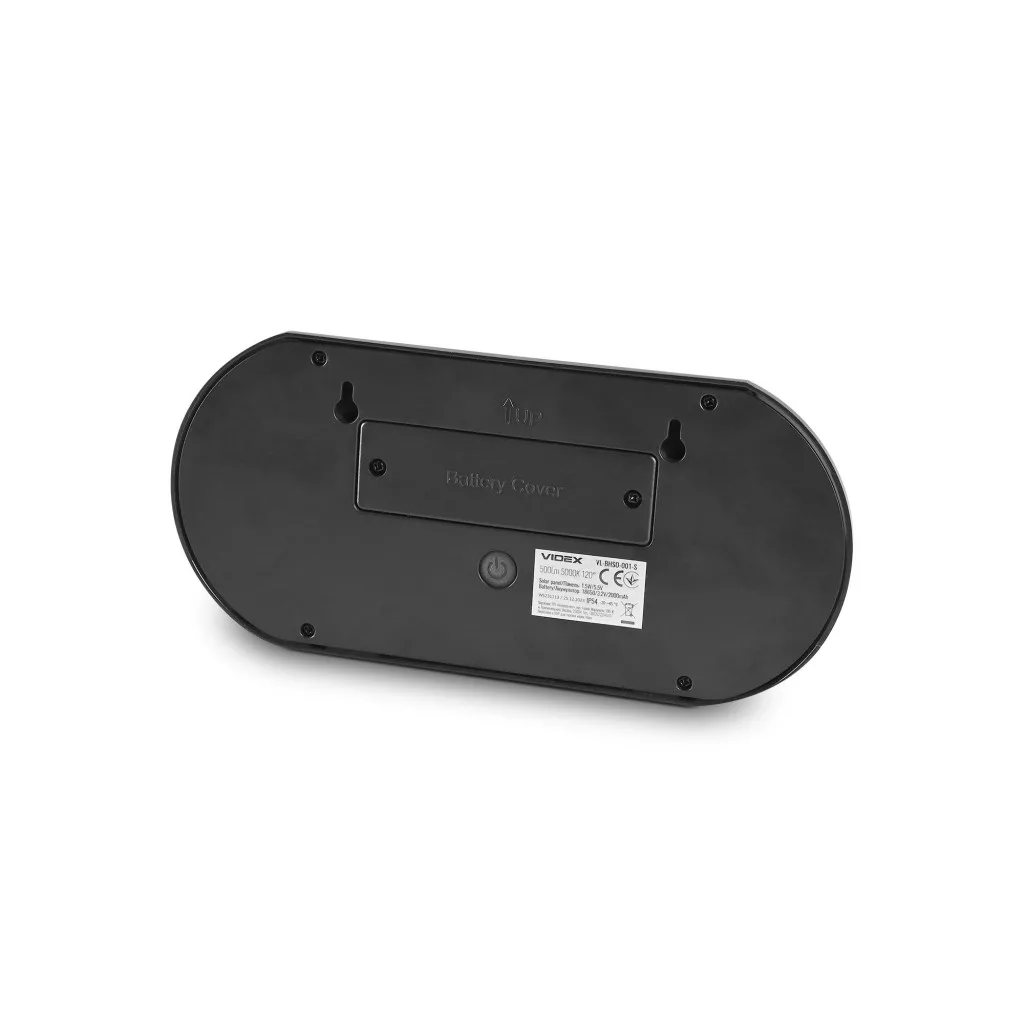

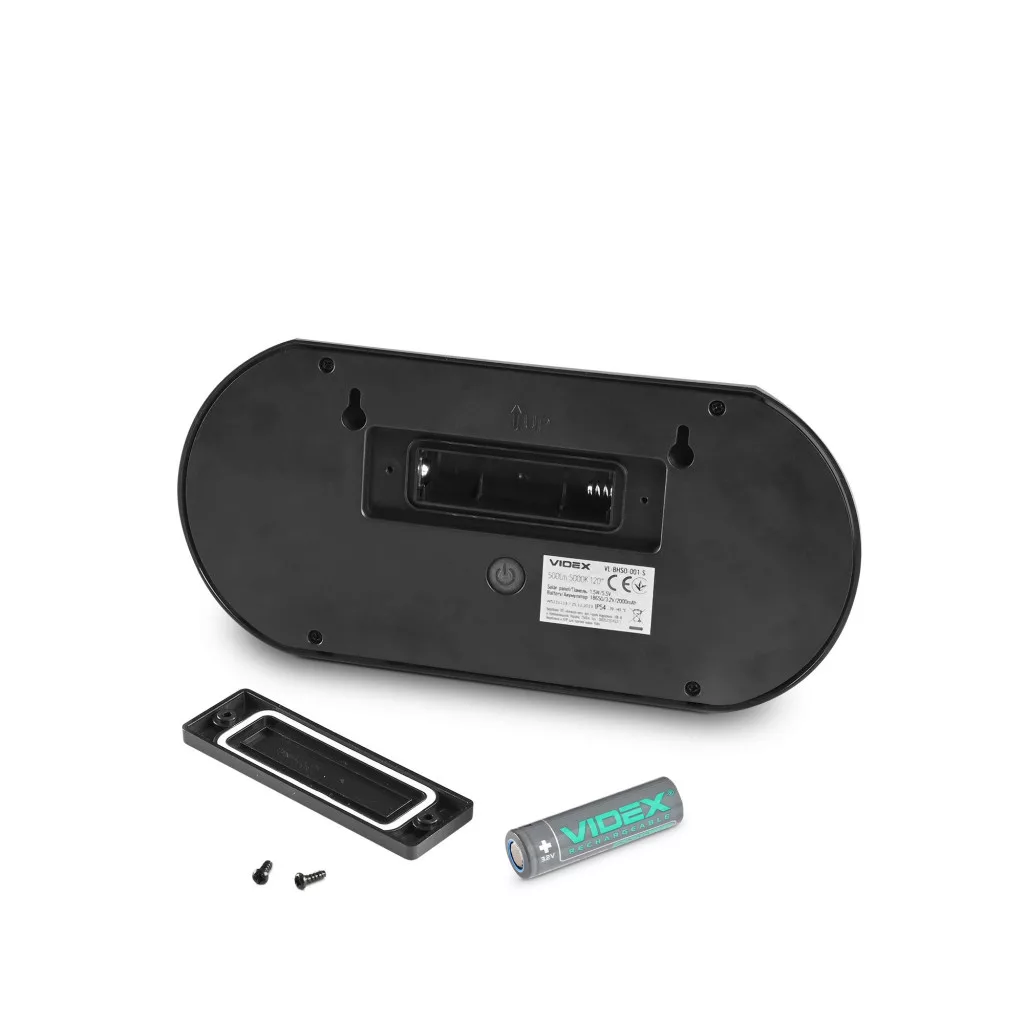

The product features a replaceable battery. If the battery degrades over time, it can be replaced. Follow the instructions in the manual for battery replacement. Only a battery of the same type may be used. Do not dispose of used batteries with household waste.
For long-term storage, it is recommended to keep the battery charge at approximately half of its capacity to extend its lifespan. Do not store with a discharged battery. To maintain original performance, clean the solar panel every 3–4 months.
The luminaire comes with a 2-year warranty.
ADVANTAGES AND FEATURES OF THE LUMINAIRE: - high-efficiency solar panel and full autonomy - flexible lighting mode settings - equipped with a replaceable 18650 LiFePo4 battery - long battery lifespan >2000 charge/discharge cycles - built-in infrared motion sensor (PIR sensor) - ingress protection IP54 - impact protection class IK07 - 120° light beam angle - long battery runtime up to 10 hours - built-in intelligent internal circuit with protection against overcharge, over-discharge, and overvoltage
PACKAGE CONTENT: - Luminaire with Videx 18650 LiFePo4 3.2V 2000mAh battery - Mounting screws - User manual - Individual packaging
INSTALLATION INSTRUCTIONS Read the user manual before installation and use. The light and solar panel are integral components. The product is designed to be mounted on walls, fences, or building facades. Recommended installation height is 2–3 meters. Install the product in locations with sufficient sunlight. Do not install on the north-facing side.
To install, follow these steps: a) Mark the drilling points and drill holes according to the mounting position; b) Insert screws, leaving a 5–6 mm gap between the screw head and the wall; c) Press the button on the luminaire to turn it on and select the operating mode (see manual); d) Mount the luminaire as shown in the diagram (see manual).
USAGE INSTRUCTIONS The light automatically turns on in sensor mode at dusk, i.e., when the ambient light level is below 15Lx. Press the button to select the desired mode, cycling through the options. After selecting a mode, no further switching is required. The luminaire memorizes the chosen mode and applies it every evening.
Note: - Before first use or after battery replacement, ensure the device completes a full charge cycle (approximately 4–6 hours) under direct sunlight. - Avoid shading the solar panel from trees, buildings, or other objects, as this may reduce performance.
OPERATING MODES: - Mode 1 (default): The light automatically turns on at 10% brightness at dusk. When motion is detected, it activates at 100% brightness for 30 seconds. If new motion is detected during these 30 seconds, the 100% brightness period extends by another 30 seconds. If no new motion is detected, it returns to 10% brightness (standby mode). - Mode 2: No light at dusk in standby mode. When motion is detected, it activates at 100% brightness for 30 seconds. If new motion is detected, the 100% brightness period extends by another 30 seconds. If no motion is detected, the light turns off completely. - Mode 3: Motion sensor function disabled; always operates at 10% brightness until the battery discharges or until dawn. - Mode 4: Device turned off.
The product features a replaceable battery. If the battery degrades over time, it can be replaced. Follow the instructions in the manual for battery replacement. Only a battery of the same type may be used. Do not dispose of used batteries with household waste.
For long-term storage, it is recommended to keep the battery charge at approximately half of its capacity to extend its lifespan. Do not store with a discharged battery. To maintain original performance, clean the solar panel every 3–4 months.
The luminaire comes with a 2-year warranty.
