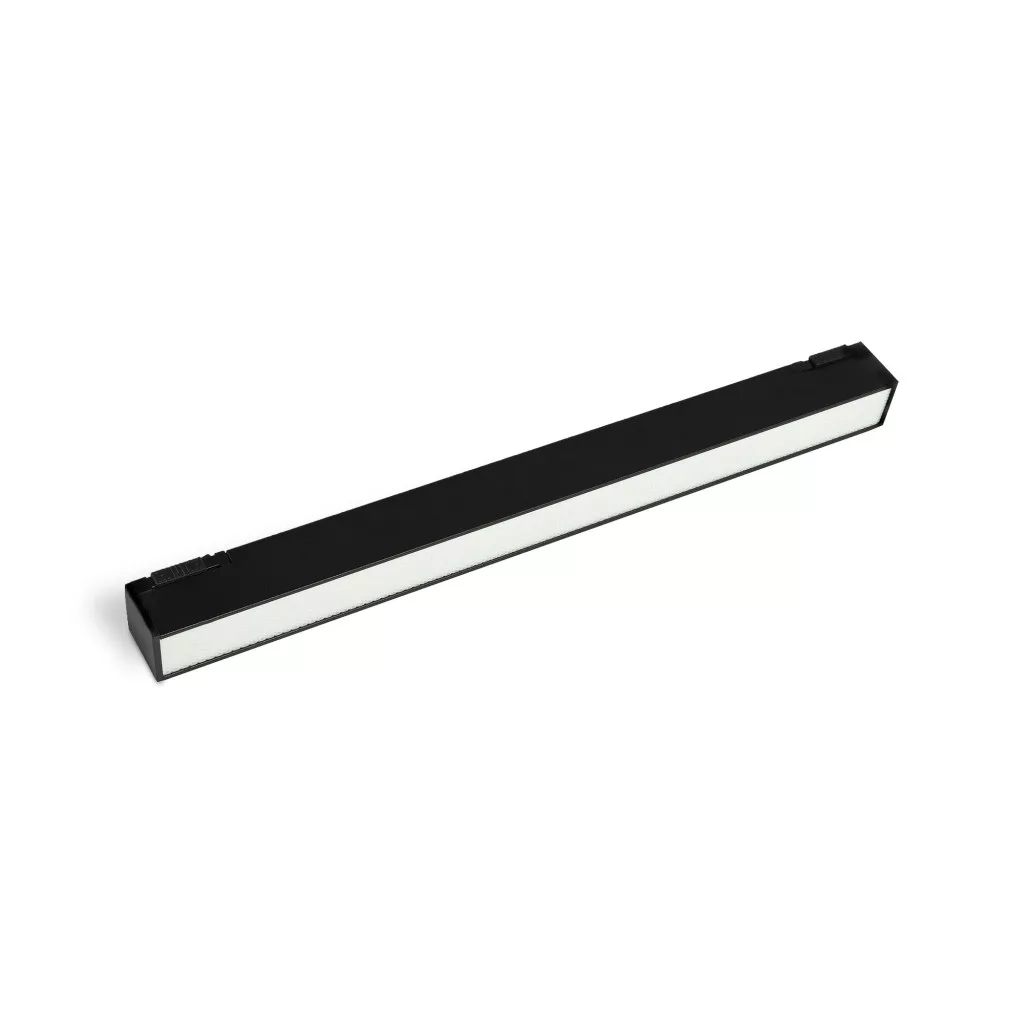

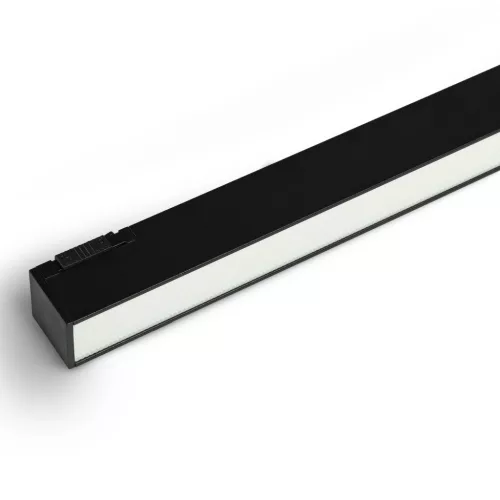

LED Light for Magnetic slim track light system VIDEX VL-TRMS-LD430B Black
Gyártói elnevezés:
LED Light for Magnetic slim track light system VIDEX VL-TRMS-LD430B Black

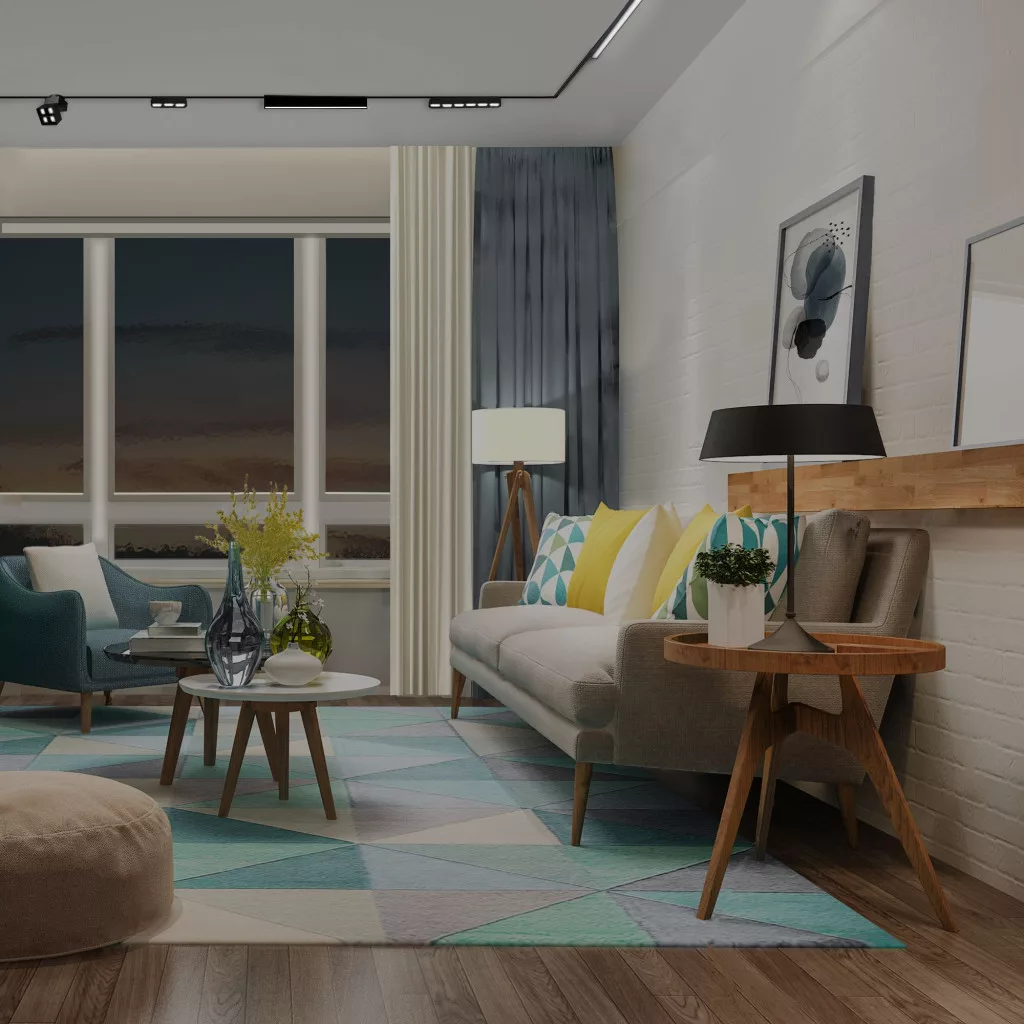

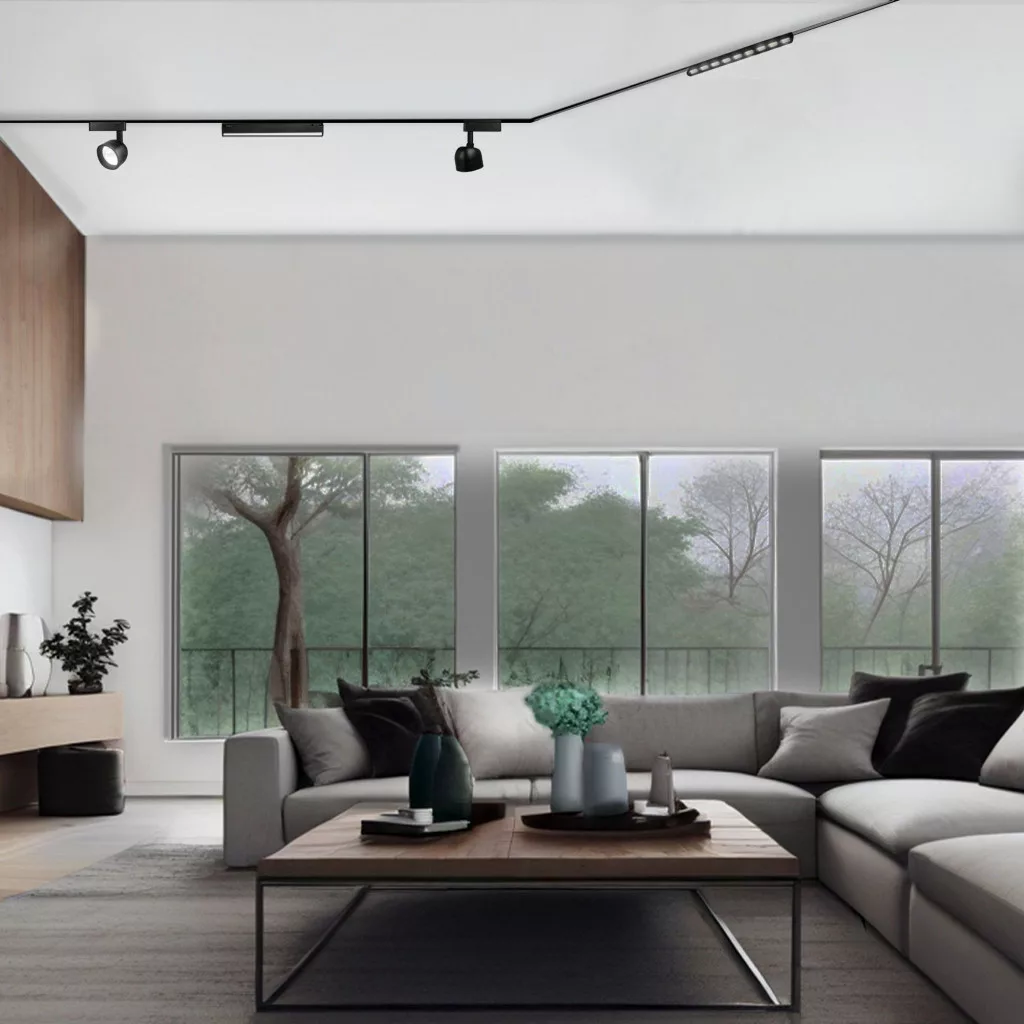

LED Light for Magnetic slim track light system VIDEX VL-TRMS-LD430B is designed for general lighting of all indoor spaces.
ADVANTAGES AND FEATURES OF THE LIGHT:- power – 10.5W- rated for 20 000 ON/OFF cycles- luminous flux – 980Lm- beam angle – 110°- color temperature – 4000K- service life – 30 000 hours- minimum distance from the illuminated object – 0.5m- ingress protection – IP20 (the product may only be used in dry indoor areas)

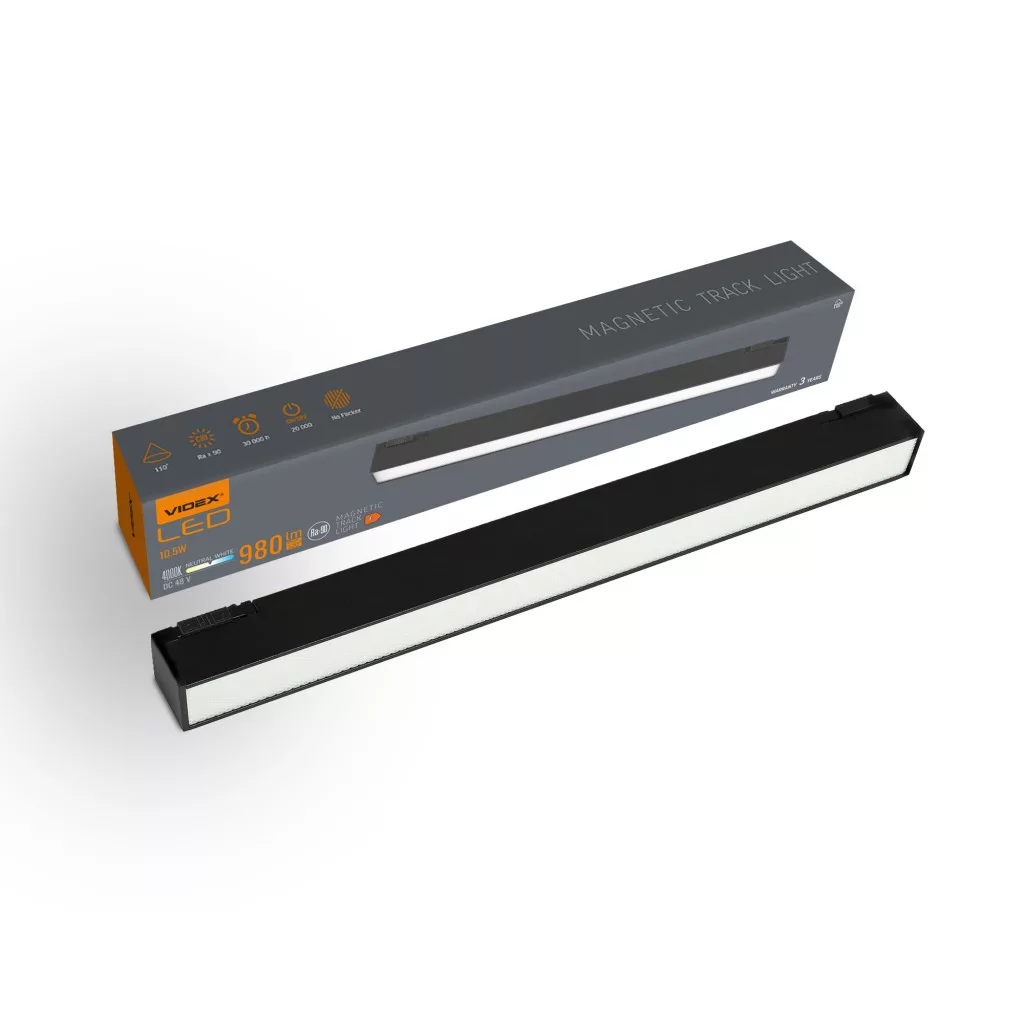

PACKAGE CONTENTS:- Light fixture- User manual- Individual packaging
INSTALLATION AND CONNECTION INSTRUCTIONSRead the manual before installation. The product can only be installed on modular tracks of the VL-TRMS-FT*** series, which are supplied separately. WARNING! This product must not be connected directly to a 220V mains supply. The fixture is powered by a low-voltage 48V system from external power supply units of the VL-TRMS-P**** series, which are supplied separately. One power supply unit can power several luminaires of different shapes within the same series. The total power of the luminaires must not exceed the maximum rated power of the power supply unit. Complete the installation and connection of the modular tracks and the power supply. Installation and connection of the track system and power supply must be carried out by a qualified specialist. All installation and connection work must be performed with the power switched off. Install the luminaire onto the track (see the manual). Before first use, check the correctness of the mechanical installation and wiring connections. The product may only be used with an electrical network that meets the energy requirements and quality standards established by law.
This product may be stored and used only in a dry environment and without exposure to direct sunlight. WARNING! Do not look directly at the LED beam.
The warranty period is 3 years.
ADVANTAGES AND FEATURES OF THE LIGHT:- power – 10.5W- rated for 20 000 ON/OFF cycles- luminous flux – 980Lm- beam angle – 110°- color temperature – 4000K- service life – 30 000 hours- minimum distance from the illuminated object – 0.5m- ingress protection – IP20 (the product may only be used in dry indoor areas)
PACKAGE CONTENTS:- Light fixture- User manual- Individual packaging
INSTALLATION AND CONNECTION INSTRUCTIONSRead the manual before installation. The product can only be installed on modular tracks of the VL-TRMS-FT*** series, which are supplied separately. WARNING! This product must not be connected directly to a 220V mains supply. The fixture is powered by a low-voltage 48V system from external power supply units of the VL-TRMS-P**** series, which are supplied separately. One power supply unit can power several luminaires of different shapes within the same series. The total power of the luminaires must not exceed the maximum rated power of the power supply unit. Complete the installation and connection of the modular tracks and the power supply. Installation and connection of the track system and power supply must be carried out by a qualified specialist. All installation and connection work must be performed with the power switched off. Install the luminaire onto the track (see the manual). Before first use, check the correctness of the mechanical installation and wiring connections. The product may only be used with an electrical network that meets the energy requirements and quality standards established by law.
This product may be stored and used only in a dry environment and without exposure to direct sunlight. WARNING! Do not look directly at the LED beam.
The warranty period is 3 years.
