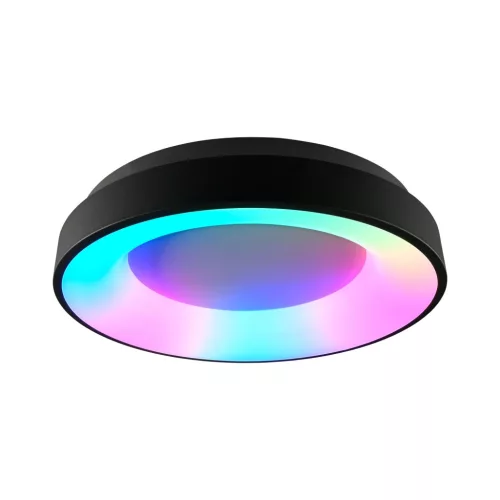

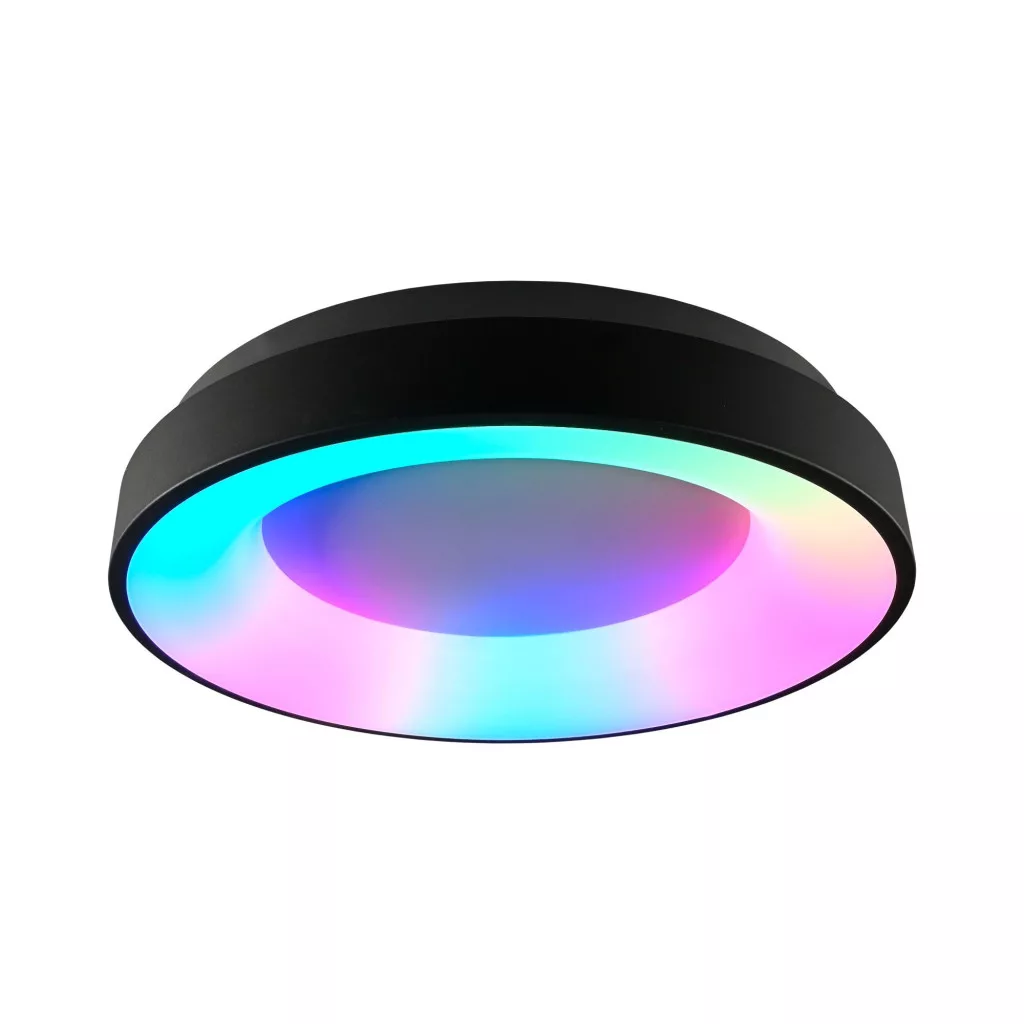

LED DIMMABLE PENDANT LUMINAIRE WITH REMOTE CONTROL VIDEX-LED-EDGE-RC-RGB-72W-BLACK
Gyártói elnevezés:
LED DIMMABLE PENDANT LUMINAIRE WITH REMOTE CONTROL VIDEX-LED-EDGE-RC-RGB-72W-BLACK

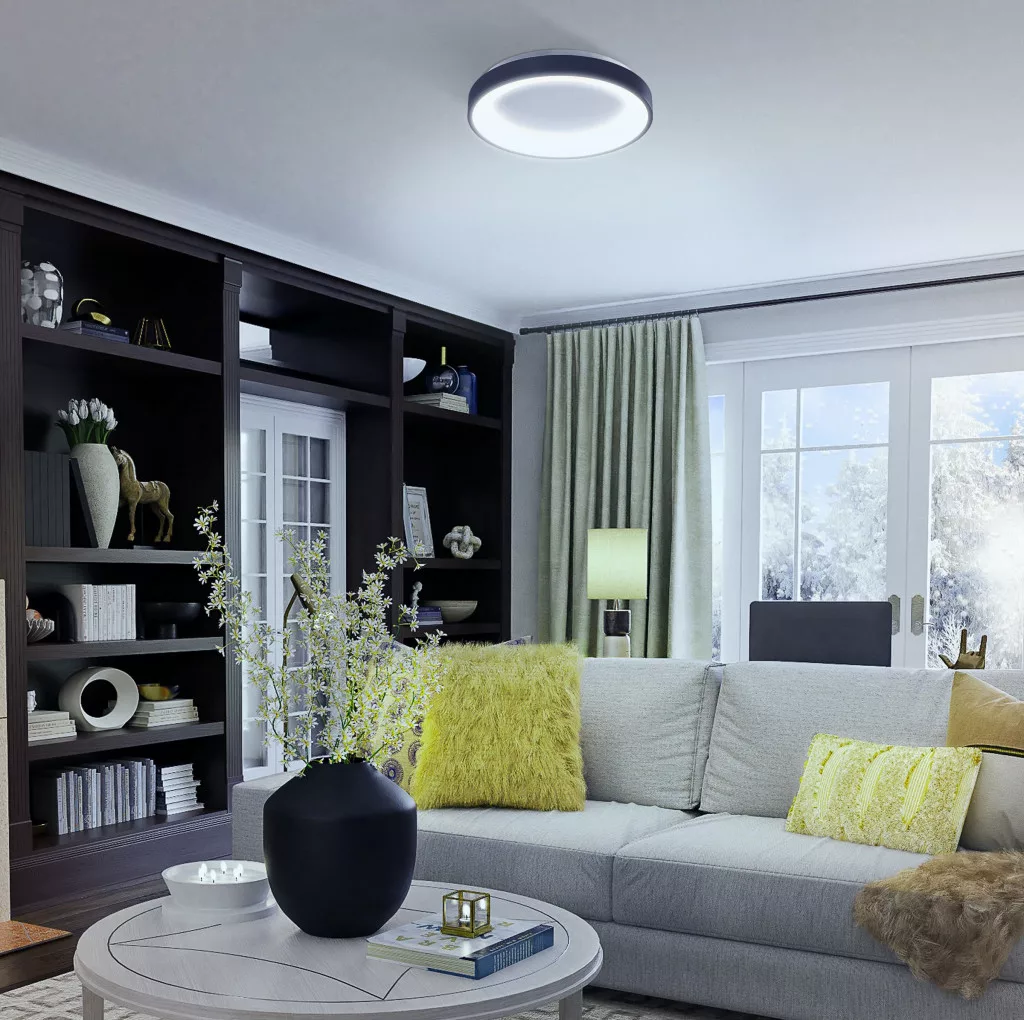

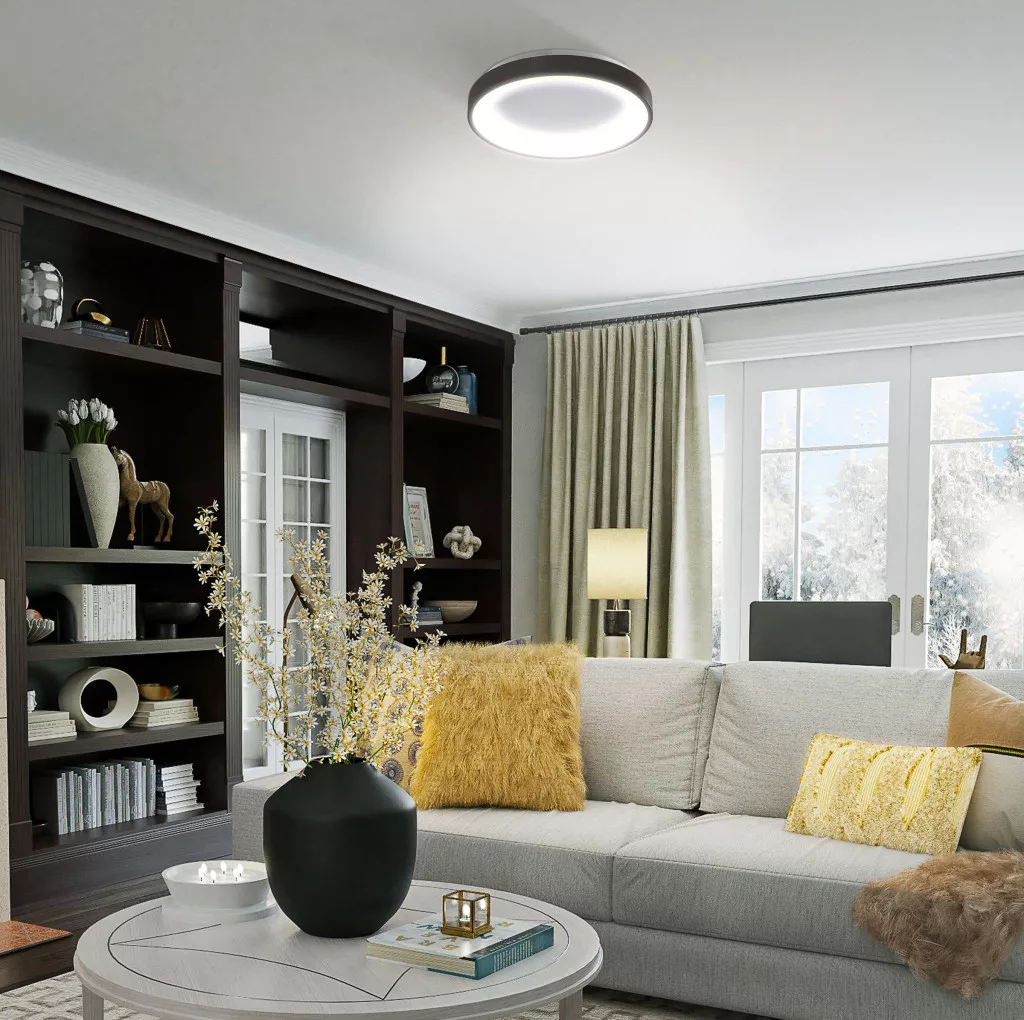

LED Dimmable Pendant Luminaire with remote control VIDEX-LED-EDGE-RC-RGB-72W-BLACK is designed for general indoor lighting.
ADVANTAGES AND FEATURES OF THE LIGHT FIXTURE: - flexible adjustment of lighting modes - memory function - 20 000 ON/OFF cycles - built-in infrared motion sensor (PIR sensor) - luminous flux of 4700Lm - beam angle – 120° - color temperature – 2700K–6000K - service life – 35000 hours - minimum distance from the illuminated object – 0.5 m - IP20 ingress protection (the product can only be used in dry indoor areas)

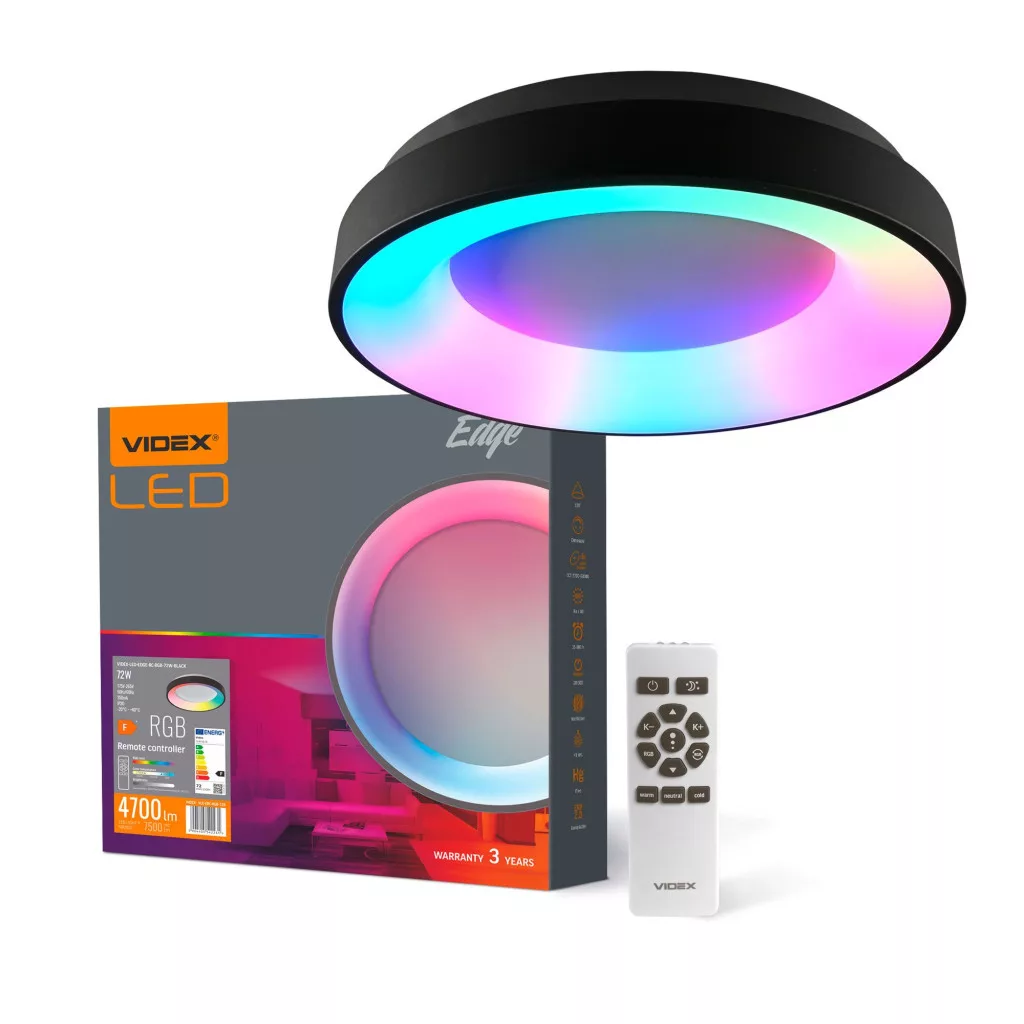

PACKAGE CONTENTS: - Light fixture - Mounting bracket - Set of mounting accessories - Remote control - AAA batteries (x2) - User manual - Individual packaging
INSTALLATION AND CONNECTION INSTRUCTIONS Before installation, read the manual carefully. Installation must be performed by a qualified specialist. Installation is allowed only when the power supply is turned off. The product must be mounted on a flat surface, such as a ceiling. Connection must be carried out using the integrated terminal block. Before first use, check the correctness of mechanical fastening and wiring connections. The product may only be used in a power network that complies with the energy requirements and quality standards established by law. ATTENTION! The infrared receiver must be exposed (see the manual).
REMOTE CONTROL OPERATION 1. ON/OFF. Press to turn the light on or off. 2. Night mode. Press to activate the night light mode. 3. Increase brightness. Press and hold to gradually increase brightness. 4. Decrease brightness. Press and hold to gradually decrease brightness. 5. Quick brightness adjustment. Press to cycle through three brightness levels. 6. Lower color temperature. Press and hold to gradually shift the main light toward a warmer tone. 7. Increase color temperature. Press and hold to gradually shift the main light toward a colder tone. 8. Colored lighting. Press to turn on decorative RGB lighting and change its color. 9. RGB lighting scenes. Press to switch between dynamic RGB lighting scenes. 10. «Warm white light». Press to quickly set the main light to a warm tone. 11. «Neutral white light». Press to quickly set the main light to a neutral tone. 12. «Cold white light». Press to quickly set the main light to a cold tone.
OPERATION WITH A WALL SWITCH Turn the switch off and then immediately on to cycle through different color temperatures and the night light mode. The light fixture has a memory function and will recall the previous mode the next time it is switched on.
This product may only be stored and used in a dry place and away from direct sunlight. ATTENTION! Do not look directly at the LED beam.
Warranty period – 3 years.
ADVANTAGES AND FEATURES OF THE LIGHT FIXTURE: - flexible adjustment of lighting modes - memory function - 20 000 ON/OFF cycles - built-in infrared motion sensor (PIR sensor) - luminous flux of 4700Lm - beam angle – 120° - color temperature – 2700K–6000K - service life – 35000 hours - minimum distance from the illuminated object – 0.5 m - IP20 ingress protection (the product can only be used in dry indoor areas)
PACKAGE CONTENTS: - Light fixture - Mounting bracket - Set of mounting accessories - Remote control - AAA batteries (x2) - User manual - Individual packaging
INSTALLATION AND CONNECTION INSTRUCTIONS Before installation, read the manual carefully. Installation must be performed by a qualified specialist. Installation is allowed only when the power supply is turned off. The product must be mounted on a flat surface, such as a ceiling. Connection must be carried out using the integrated terminal block. Before first use, check the correctness of mechanical fastening and wiring connections. The product may only be used in a power network that complies with the energy requirements and quality standards established by law. ATTENTION! The infrared receiver must be exposed (see the manual).
REMOTE CONTROL OPERATION 1. ON/OFF. Press to turn the light on or off. 2. Night mode. Press to activate the night light mode. 3. Increase brightness. Press and hold to gradually increase brightness. 4. Decrease brightness. Press and hold to gradually decrease brightness. 5. Quick brightness adjustment. Press to cycle through three brightness levels. 6. Lower color temperature. Press and hold to gradually shift the main light toward a warmer tone. 7. Increase color temperature. Press and hold to gradually shift the main light toward a colder tone. 8. Colored lighting. Press to turn on decorative RGB lighting and change its color. 9. RGB lighting scenes. Press to switch between dynamic RGB lighting scenes. 10. «Warm white light». Press to quickly set the main light to a warm tone. 11. «Neutral white light». Press to quickly set the main light to a neutral tone. 12. «Cold white light». Press to quickly set the main light to a cold tone.
OPERATION WITH A WALL SWITCH Turn the switch off and then immediately on to cycle through different color temperatures and the night light mode. The light fixture has a memory function and will recall the previous mode the next time it is switched on.
This product may only be stored and used in a dry place and away from direct sunlight. ATTENTION! Do not look directly at the LED beam.
Warranty period – 3 years.
* A termékleírás tájékoztató jellegű, és automatikusan fordított szöveget is tartalmazhat. A képek illusztrációk, a pontos adatokért kérjük, ellenőrizze a gyártói adatlapot.
